Specialized CHISEL - Headset, Fork, and Stem Assembly

23
5.6. HEADSET, FORK, AND STEM ASSEMBLY
D
C
A
E
B
F
G

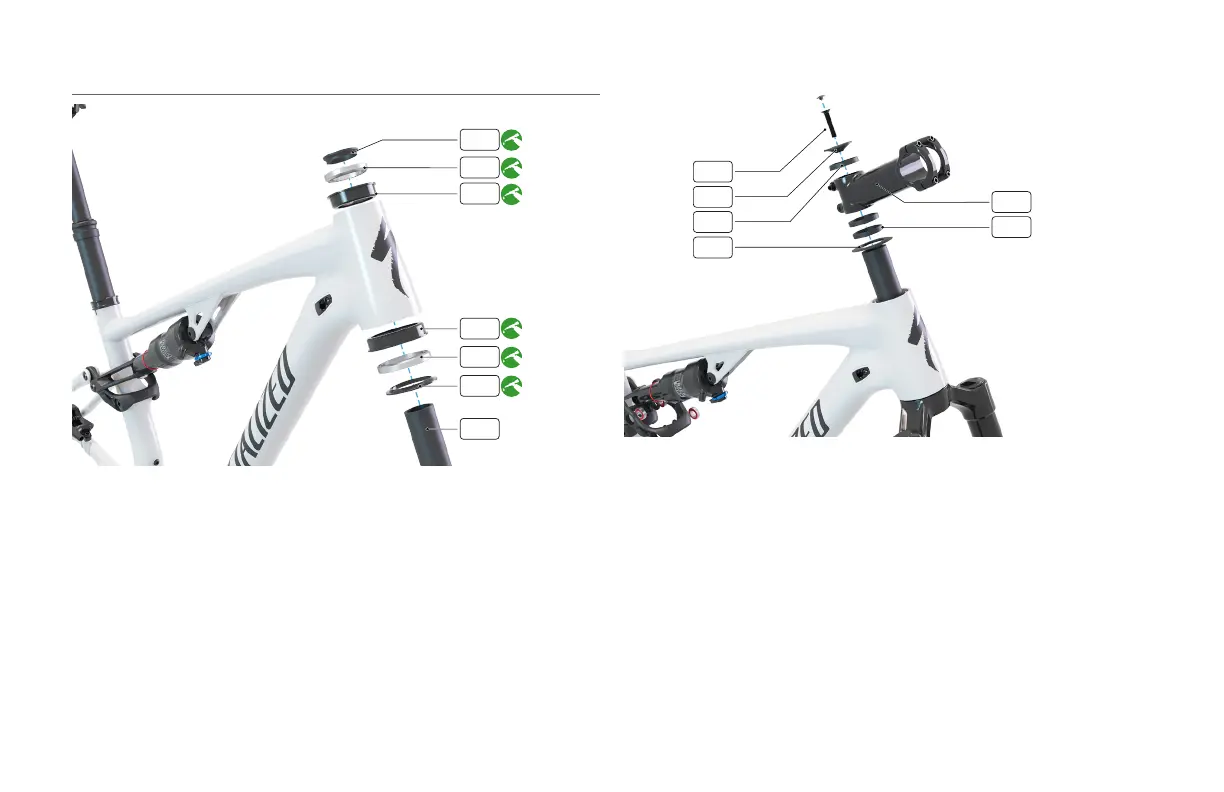

 Install the upper (A) and lower (B) drop-in bearing cups.
 Grease and install the upper bearing (C) followed by the compression
ring (D) into the top of the head tube.
 Grease and install the lower bearing (E) into the bottom of the head
tube.
 Apply a small amount of grease then install the crown race (F) onto the
steerer tube (G) making sure it’s fully seated on the fork crown, then
install the steerer tube into the head tube.
A
E
D
F
B
C
 Install the headset cover (A), your desired amount of spacers (B), then
the stem (C) onto the steerer tube.
 Install the tapered spacer (D) above the stem for optional adjustment
later.
 Install the top cap (E) and bolt (F). Tighten the top cap bolt to pre-load
the headset. There should be no free play in the assembly and the
handlebar should steer freely.
