5.4. REAR BRAKE MOUNT
E
D
A
B
C

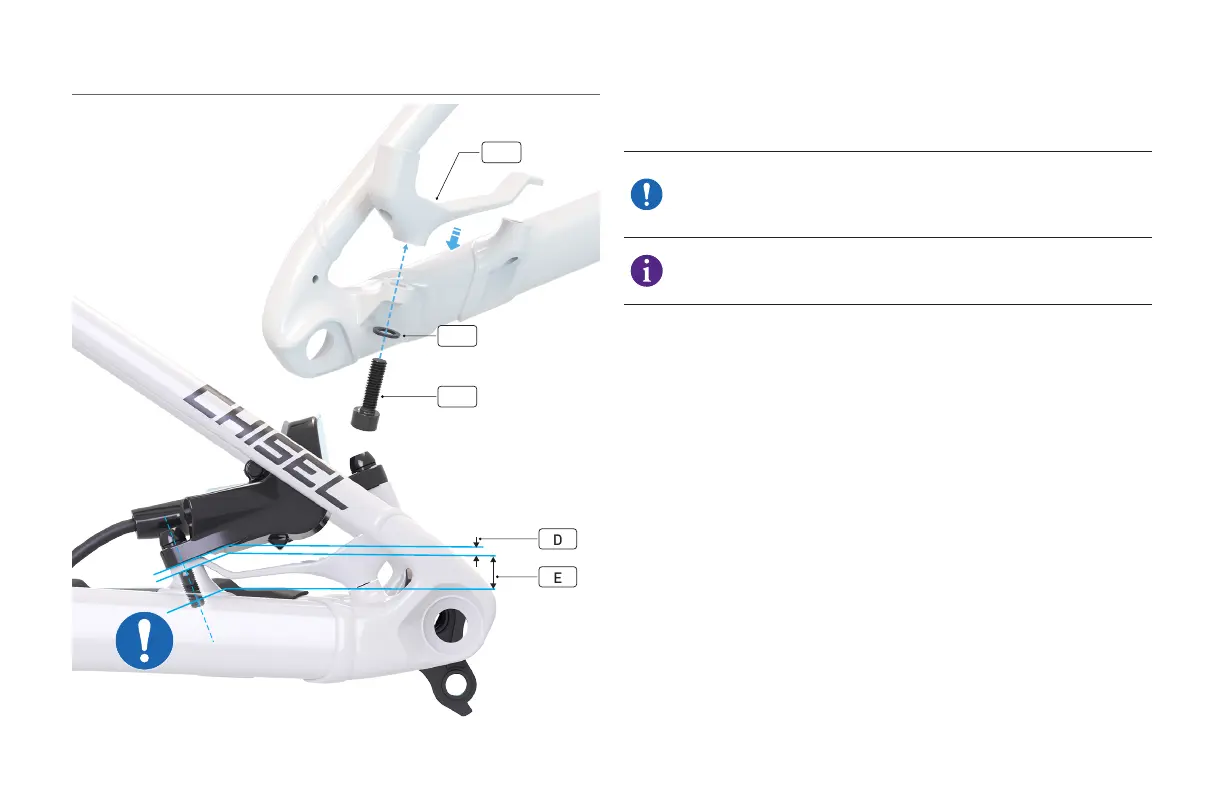

Assemble the brake mount (A) in place on the non-drive side chainstay.
Insert the rear bolt (B) with washer (C) from the underside.
Using a torque wrench and 5mm hex bit, torque the bolt to 6 Nm / 53
in-lbf.
CAUTION: When installing the forward brake caliper bolt, the
bolt must be inserted through the brake mount hole (D) and into
the chainstay mount deep enough for a minimum of 9 mm thread
engagement (E).
If you customize your bicycle's brakes, ensure the supplied
bolts have the correct thread engagement. If the engagement is
insufficient, please replace the bolts with longer ones.
