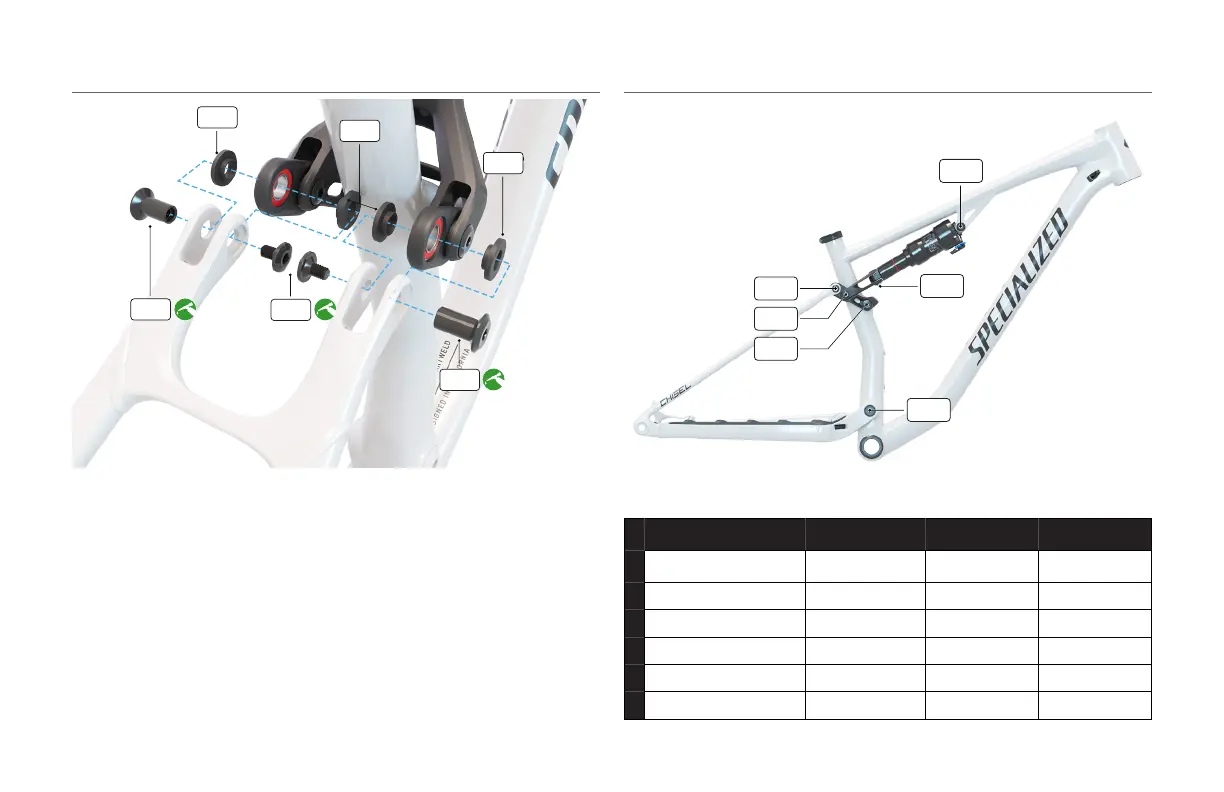

5.1.9 LINK AT SEATSTAY
A
A
A
C
B
B
 Grease, then place the seatstay spacers (x4) (A) into the link bearings.
 Flex the seatstay to align with the link bearings.
 Grease, then insert the seatstay axles (x2) (B), from the outside, into the
holes in the seatstay.
 Grease, then thread the seatstay bolts (x2) (C) into the seatstay axles.
 Using two 4mm hex keys, loosely tighten the bolts.
5.1.10 BOLT TORQUING SEQUENCE
4
3
2
6
5
1
 Using a torque wrench, torque each pivot bolt in order according to the
torque spec listed below.
#
PIVOT LOCATION TOOL in-lbf Nm
1 Main Pivot 5 mm hex 89 10
2
Link at Seat Tube 6 mm hex 89 10
3
Link at Extension 4 mm hex 53 6
4
Link at Seatstay 4 mm hex 53 6
5 Forward Shock Bolt 4 mm hex 53 6
6 Rear Shock Bolt 6 mm hex 177 20
