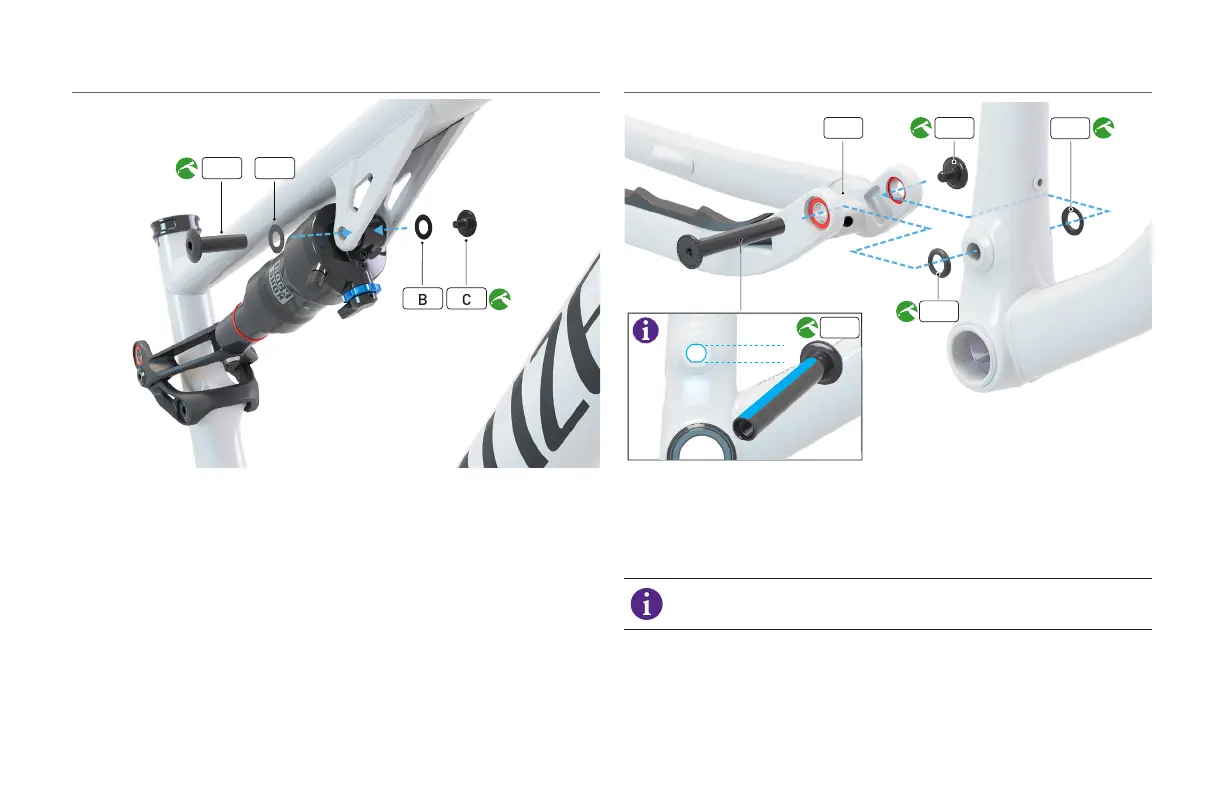

5.1.7 FORWARD SHOCK MOUNT
B C
A B
 Align the forward shock eyelet with the frame mount.
 Grease then insert the forward shock mounting axle (A) and washer (B)
from the drive side of the frame.
 Grease, then insert the mounting bolt (C) with washer (B) into the axle.
 Using a 4mm hex key, loosely tighten the bolt.
5.1.8 MAIN PIVOT
D
A
A
B
C
 Grease then place the spacers (A) against the inner surfaces of the pivot
bearings.
 Align the chainstay bearings (B) with the main pivot bore.
 Grease, then insert the main pivot axle (C) through the chainstay (drive
side) into the frame.
The main pivot axle is keyed to prevent the axle from rotating.
Ensure axle is inserted correctly into the pivot bore.
 Grease, then thread the main pivot bolt (D) into the axle.
 Using a 5mm hex key, loosely tighten the bolt.
