Specialized CHISEL - Link at Seat Tube; Shock at Extension with Flip Chips

16

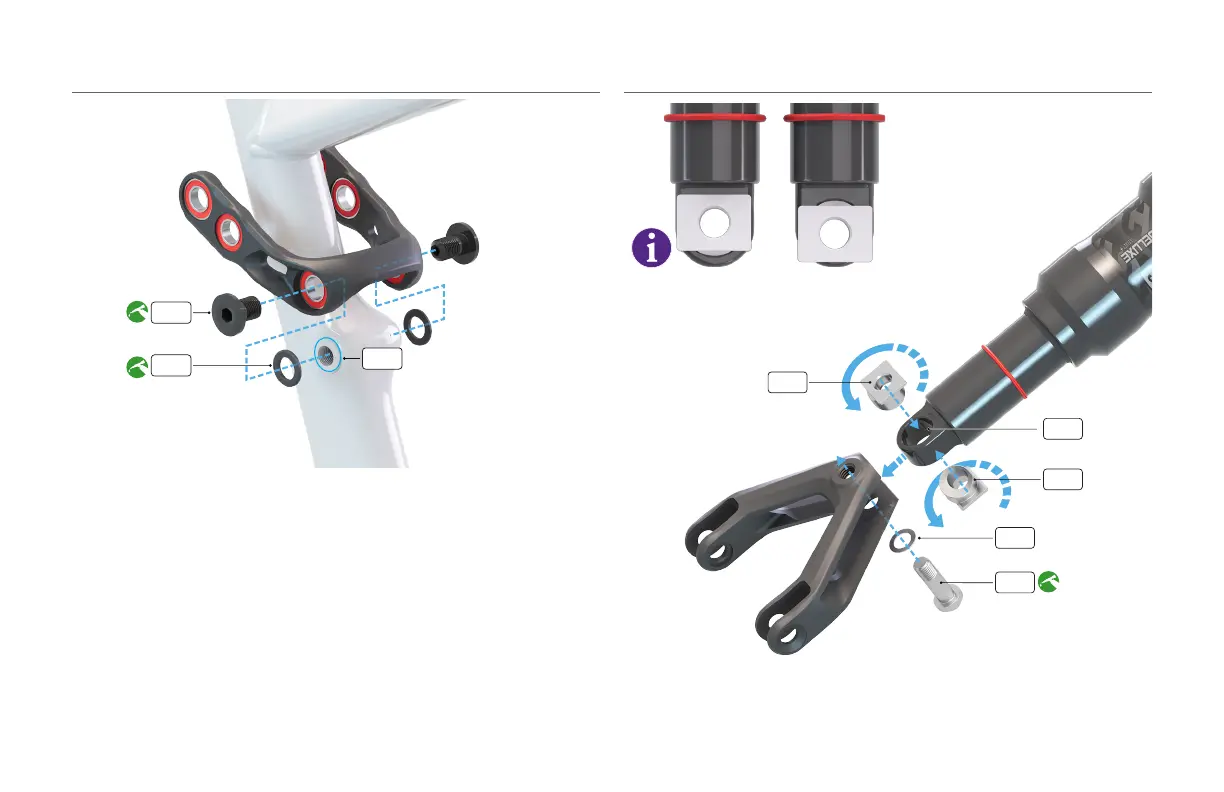

5.1.4 LINK AT SEAT TUBE
C
B
A
 Grease then place the link spacers (A) against the link bearings.
 Align the link with the seat tube pivot threaded bore (B).
 Grease and thread the link at seat tube bolts (C) into the frame.
 Using a 6mm hex key, loosely tighten the bolts.
5.1.5 SHOCK AT EXTENSION WITH FLIP CHIPS
A
C
D
A
B
LOW HIGH
