Specialized SpeedZone - Mounting Instructions; Mounting the SpeedZone Comp

computer. If you
need to replace
the battery,
make a note of
your odometer
reading and
wheel circum-
ference settings
before remov-
ing it. You can then re-enter the data
when you restart the computer.
MOUNTING
THE SPEEDZONE COMP
The SpeedZone Comp wheel sensor
can mount on the right or the left side
of the fork blade. Use the cable tie
wraps provided to position the sensor.
Do not tighten until the final place-
ment of the sensor magnet is correct.
(See figure 4). Wheel magnets have
been provided for both traditional
round spokes and bladed (flat) aero-
dynamic spokes.

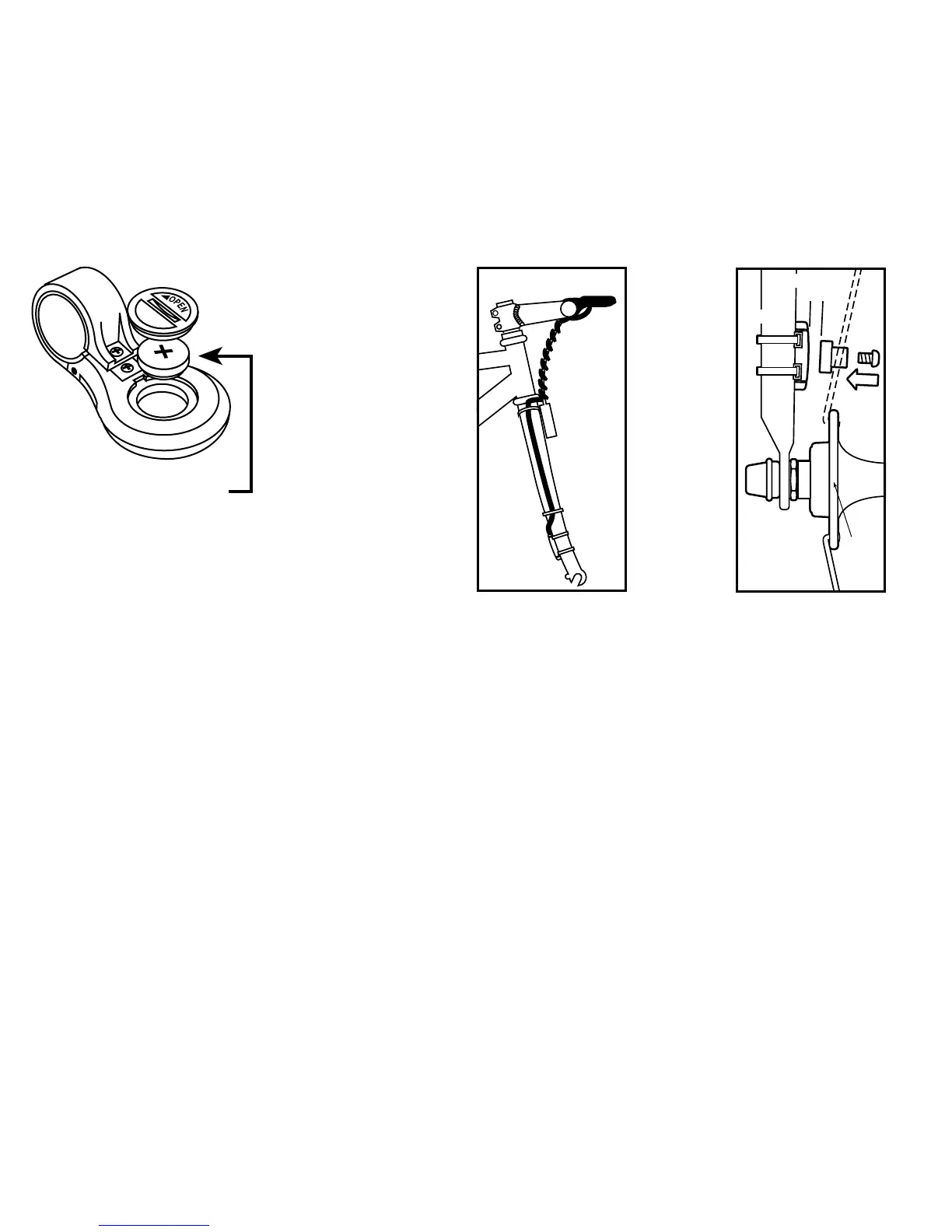

4
Cable
Tie
Wraps
Sensor
Brake
Cable
FIGURE 4.
SENSOR
PLACEMENT
CR2032 battery
FIGURE 3.
Sensor
Magnet
1/32-1/16 in.
1-2 mm
Sensor
Front
Wheel
FIGURE 5.
MAGNET
PLACEMENT
