For wheels with round spokes:
Attach the magnet to a spoke across
from the transmitter with the magnet
screw. The clearance between the
magnet and the transmitter should be
approximately 1/32”-1/16” (1-2mm).
Tighten the magnet and transmitter.
Do not over-tighten the magnet screw.
(See figure 5).
For wheels with bladed spokes:
Use some isopropyl (rubbing) alcohol
or a mild detergent to thoroughly
clean the spoke that you plan to attach
the magnet to. Remove the backing
from the adhesive tape and firmly
press the magnet onto spoke. The tape
uses a special pressure sensitive adhe-
sive. To ensure a strong bond, please
wait at least 12 hours for the adhesive
to cure before riding your bicycle.
Your SpeedZone Comp comes pre-
configured with a strap to fit standard
road and mountain bike handlebars.
Attach the mount to the handlebar
using the Philips head screw provided.
Tighten so that the bracket cannot
rotate on the handlebar. There are
several sizing shims provided to fit
different diameter bars. If you are
5

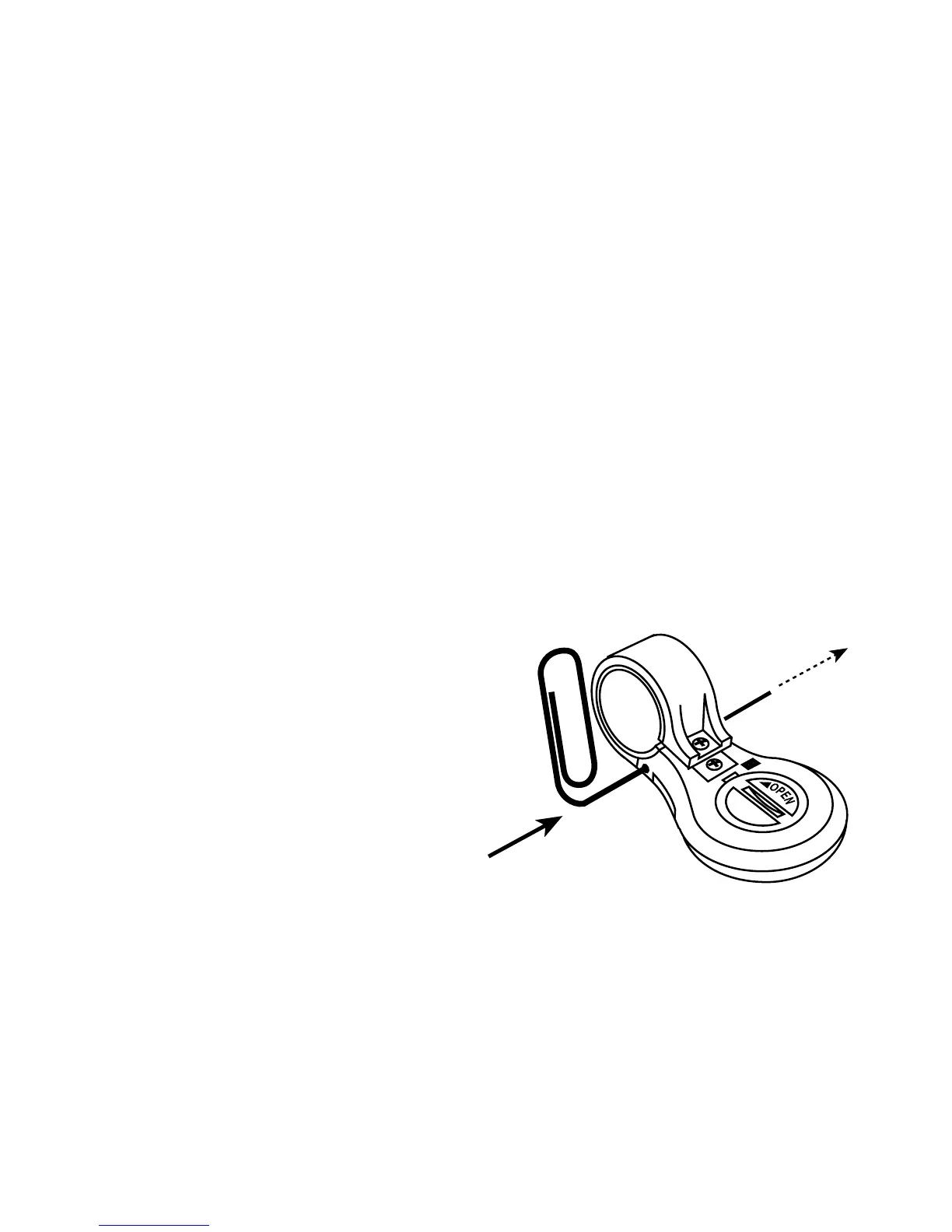

FIGURE 6. STRAP INSTALLATION
