Speco O4VB2G - Other Alarms

16

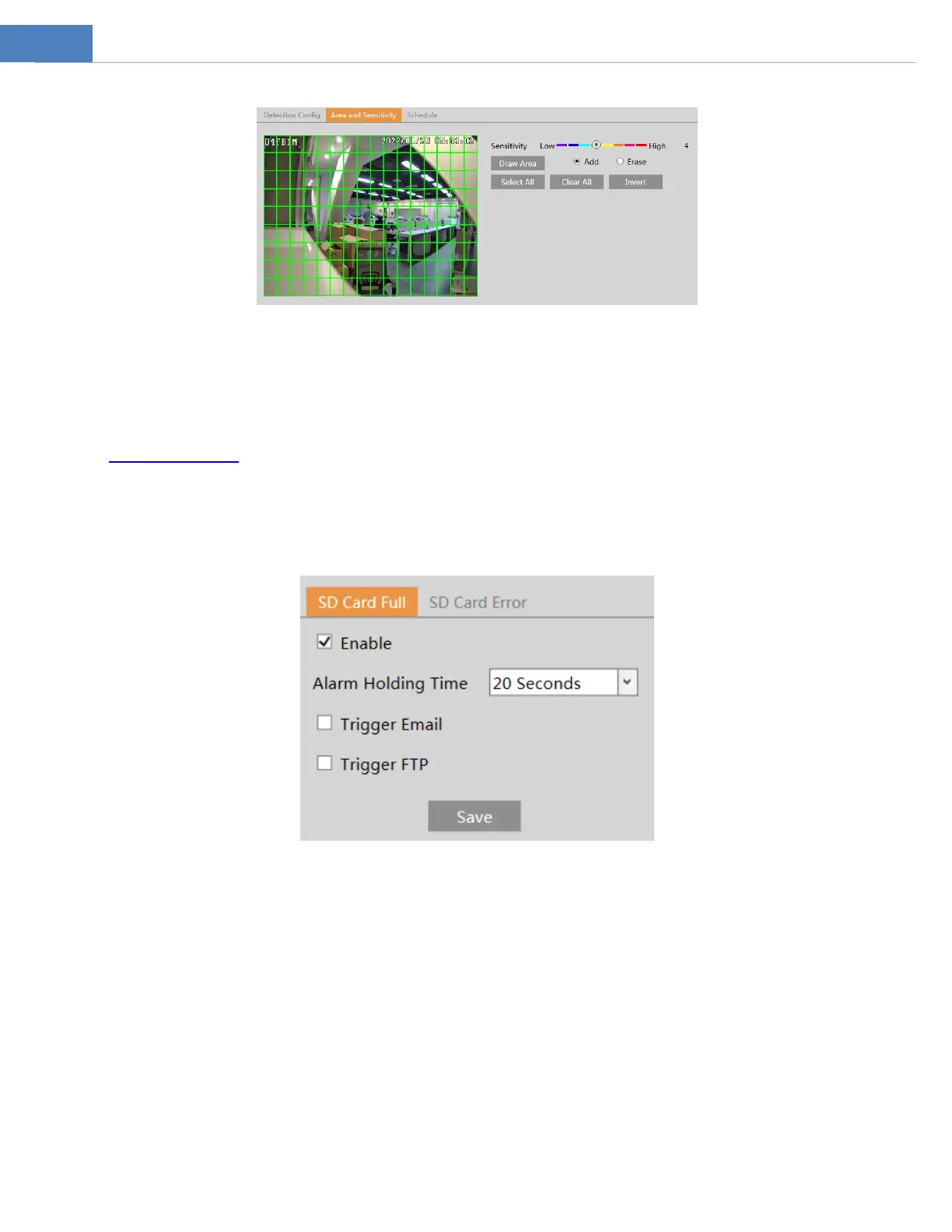

Move the “Sensitivity” scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily.
Select “Add” and click “Draw”. Drag the mouse to draw the motion detection area; Select “Erase” and drag the mouse to clear
motion detection area.
After that, click the “Save” to save the settings. “Clear All” can be used to clear out the entire motion zone.
3. Set the schedule for motion detection. The schedule setup steps of the motion detection are the same as the schedule recording
setup (See Schedule Recording).
4.3.2 Other Alarms
 SD Card Full
1. Go to AlarmAnomalySD Card Full.
2. Click “Enable” and set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
 SD Card Error
When there are some errors in writing SD card, the corresponding alarms will be triggered.
1. Go to AlarmAnomalySD Card Error as shown below.
