Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 96 P/N 79000035_SM, Version 1.5

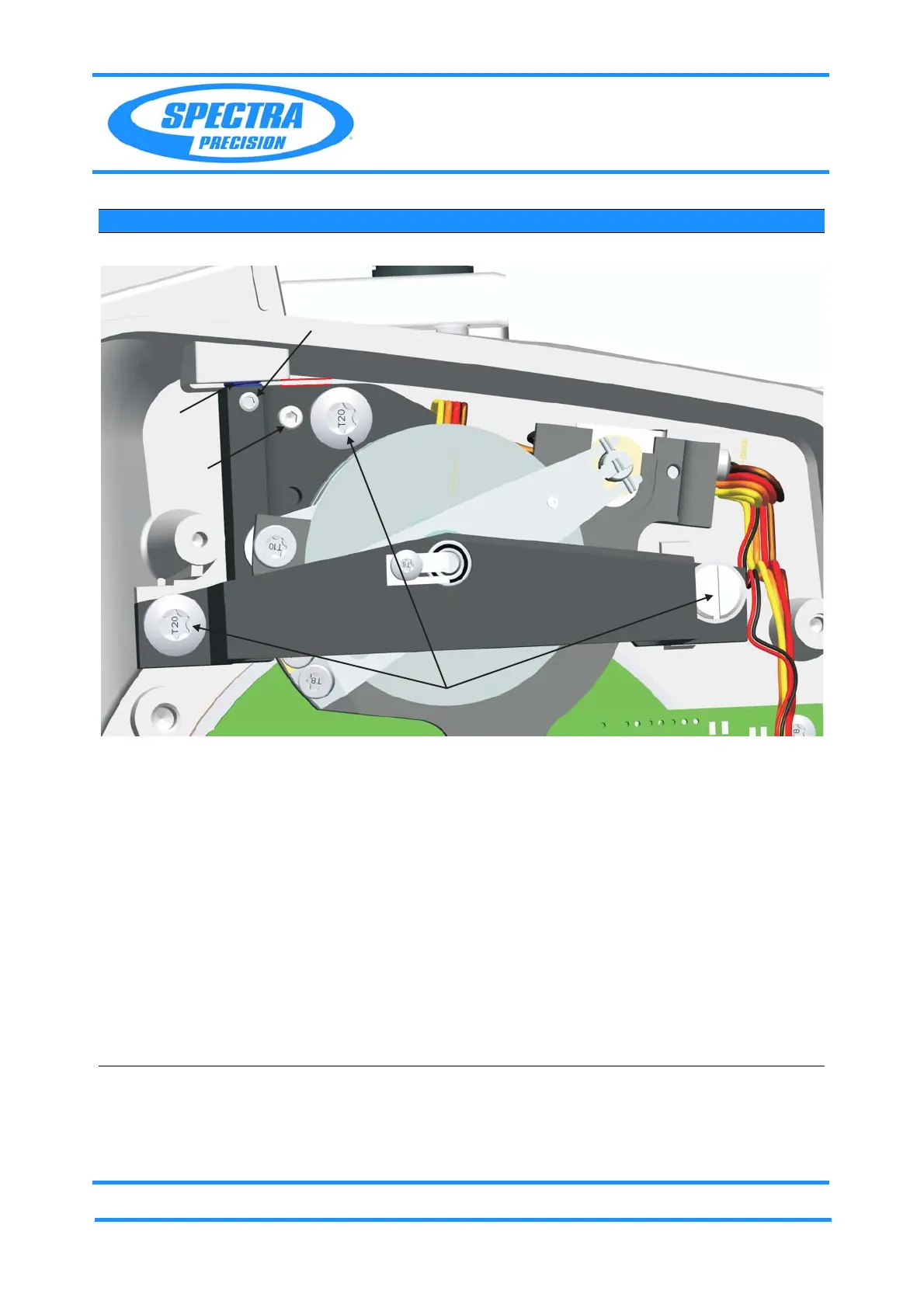

Fig. 5-73 Preparation Coarse drive V
4 Remove Coarse
drive V and Fine
drive V.
A. Unhook the spring
and take it out.
B. Remove three
screws with
washer.
C. Unhook and
remove the Fine
drive V.
D. Remove the three
screws with
washer.
E. Take out the Coarse
drive V.
40Ncm/3.54lbfin
100Ncm/8.85lbfin
Precondition: The
Fine drive V could
not be removed
according to
Item 3.
Torx T8 bit
Torx T20 bit, flat
screw driver.
Be careful, avoid a
jumping out of the
extension spring.
Item Performance Action Result Notes
A
B
/C
Gap
Compression
spring
D
