Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 101 Focus 30/35 Service Manual

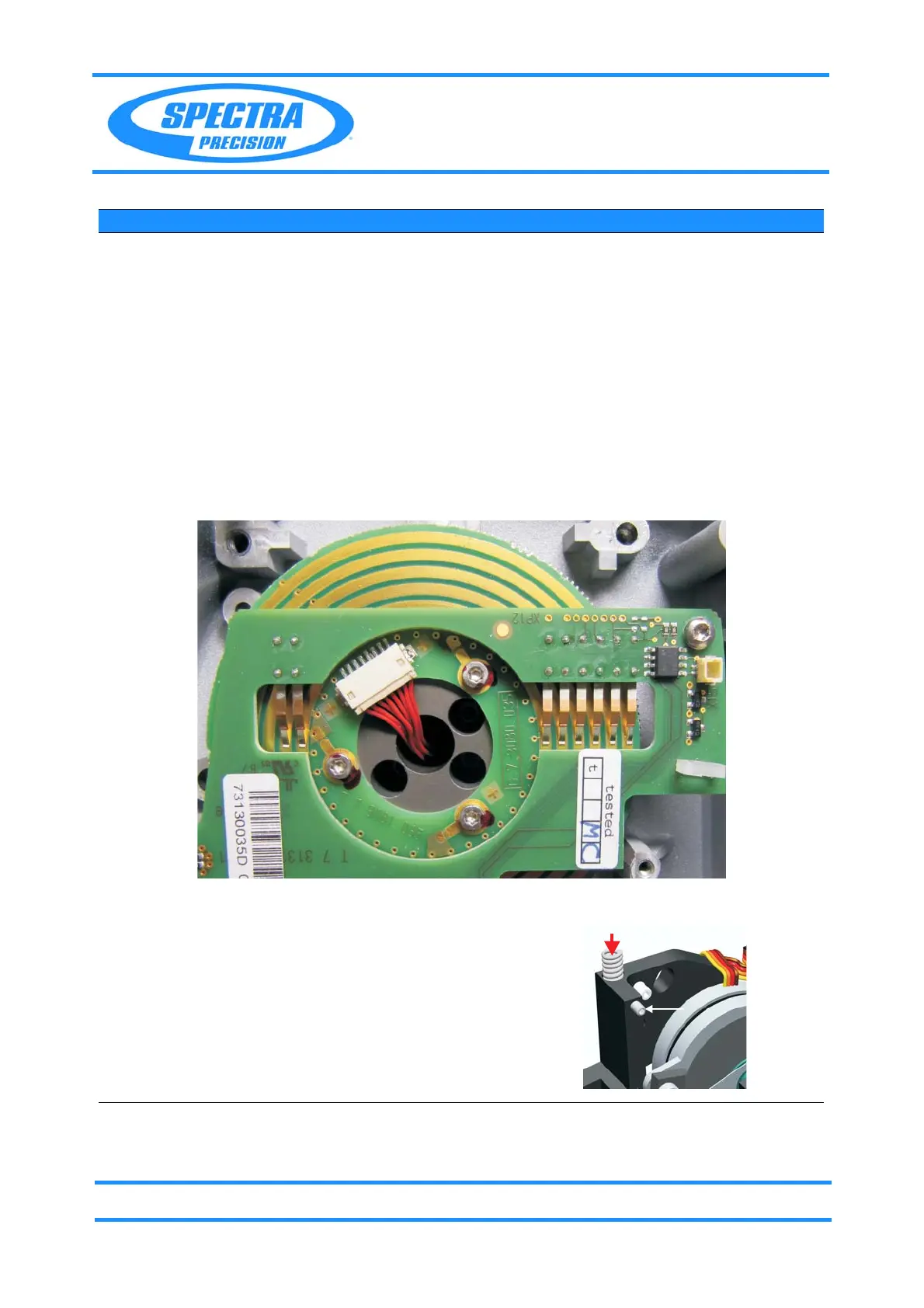

3 Mount Slip ring board
SRB.
Mount Slip ring board
in reverse order, see
Fig. 5-75 on page 5-98
and center the board to
the screws.
40Ncm/3.54Lbfin
4 Mount MCB board. Mount Main control
board,see page 5-42.
Position MCB to the
Slip ring board to
centre the slider
contacts to the
middle of their
tracks see Fig. 5-68
on page 5-89 .
Fig. 5-78 Slider contacts
5 Preparation Coarse
drive V.
A. Press the
compression
spring in the
holder and fix it
with the holding
screw till you find
a first resistance.
B. Lay down the
instrument on the
Side cover left.
Item Performance Action Result Notes
A
