Hardware Installation
Jumper Settings
Clear CMOS Data
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can recongure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP5 pins 2 and 3 to On. Wait for a few seconds and set JP5 back to its
default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.

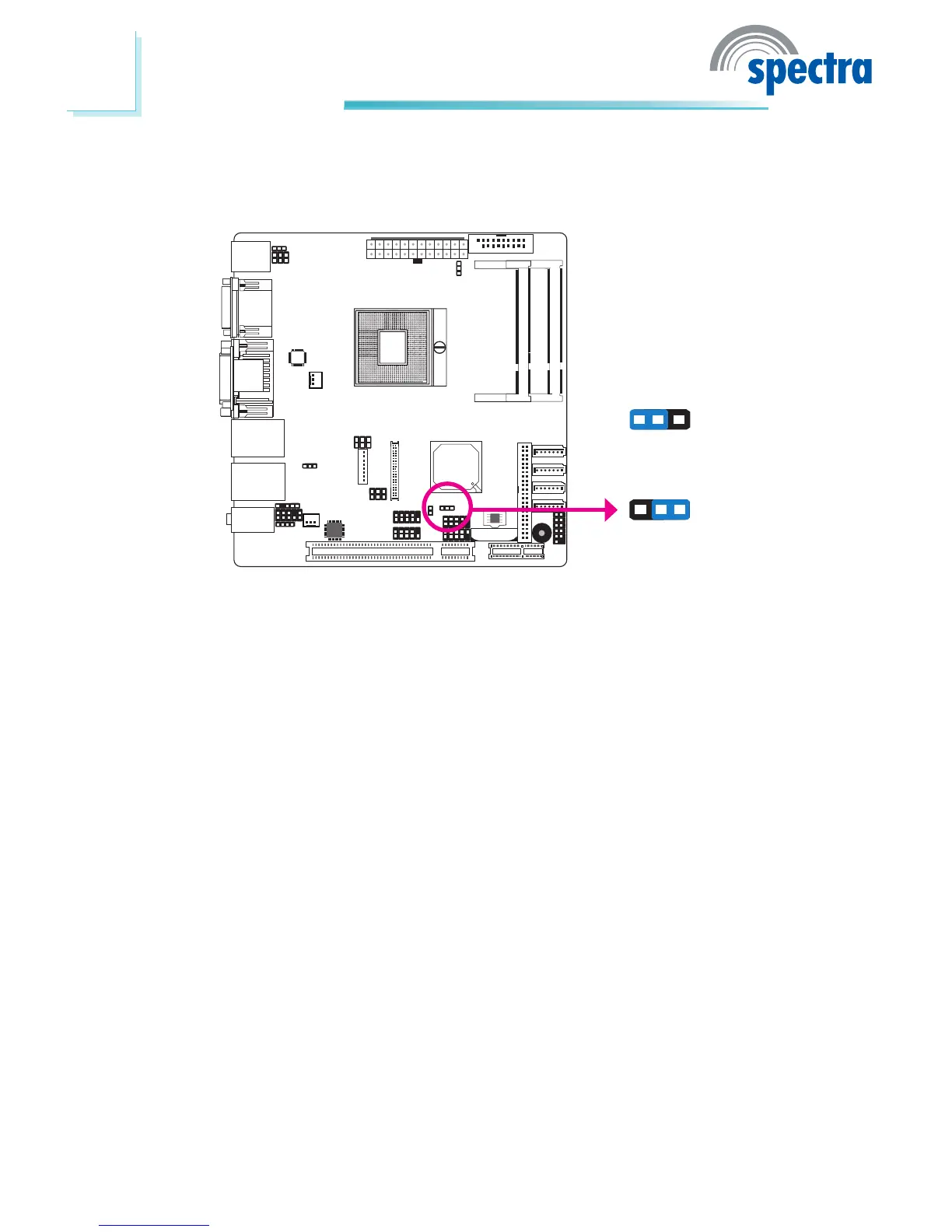

JP5
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
31 2
31 2
