Spectra SAM-3040D - SATA (Serial ATA) Connectors

47
Hardware Installation
The Serial ATA connectors are used to connect Serial ATA devices. Connect one
end of the Serial ATA cable to a SATA connector and the other end to your Serial
ATA device.
BIOS Setting
Congure the Serial ATA drives in the Advanced menu (“SATA Conguration” sub-
menu) of the BIOS. Refer to chapter 3 for more information.
Configuring RAID
The system board allows conguring RAID on Serial ATA drives. Refer to chapter
5 for steps in conguring RAID.

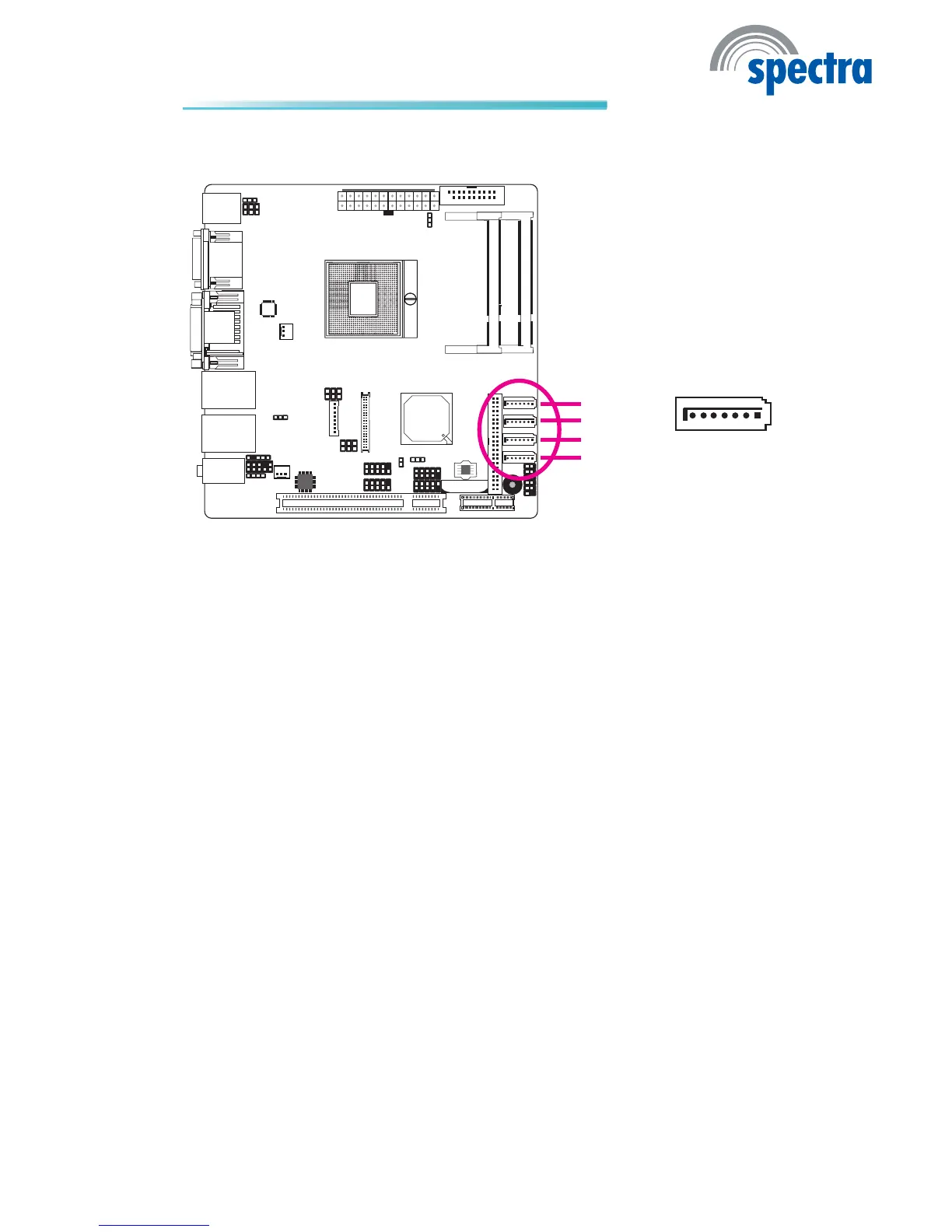

SATA (Serial ATA) Connectors
SATA 0
SATA 1
SATA 4
SATA 5
7
RXN
GND
TXP
TXN
GND
1
RXP
GND
