Hardware Installation
LVDS LCD Panel Connector
LCD/Inverter Power Connector

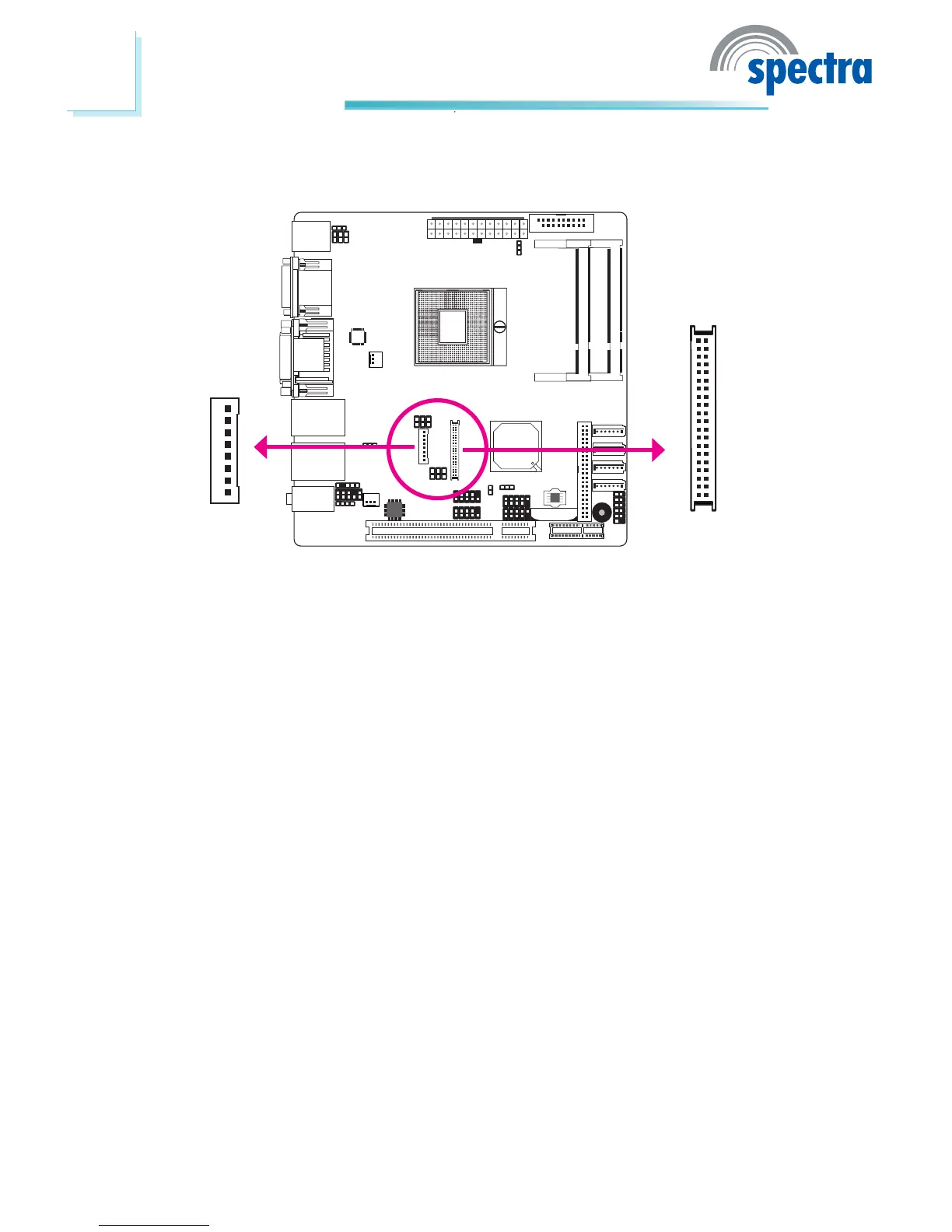

The system board allows you to connect a LCD Display Panel by means of the
LVDS LCD panel connector and the LCD/Inverterpowerconnector.These connec-
torstransmitvideo signals and power from the systemboard to the LCD Display
Panel.
Refertothenextpageforthepinfunctionsoftheseconnectors.
BIOS Setting
Congurethe LCDpanelinthe Chipset menuoftheBIOS.Refertochapter3for
moreinformation.
39 40
LVDSLCD
panel
1 2
LCD/Inverter
power
8
1
