Hardware Installation
Rear Panel I/O Ports

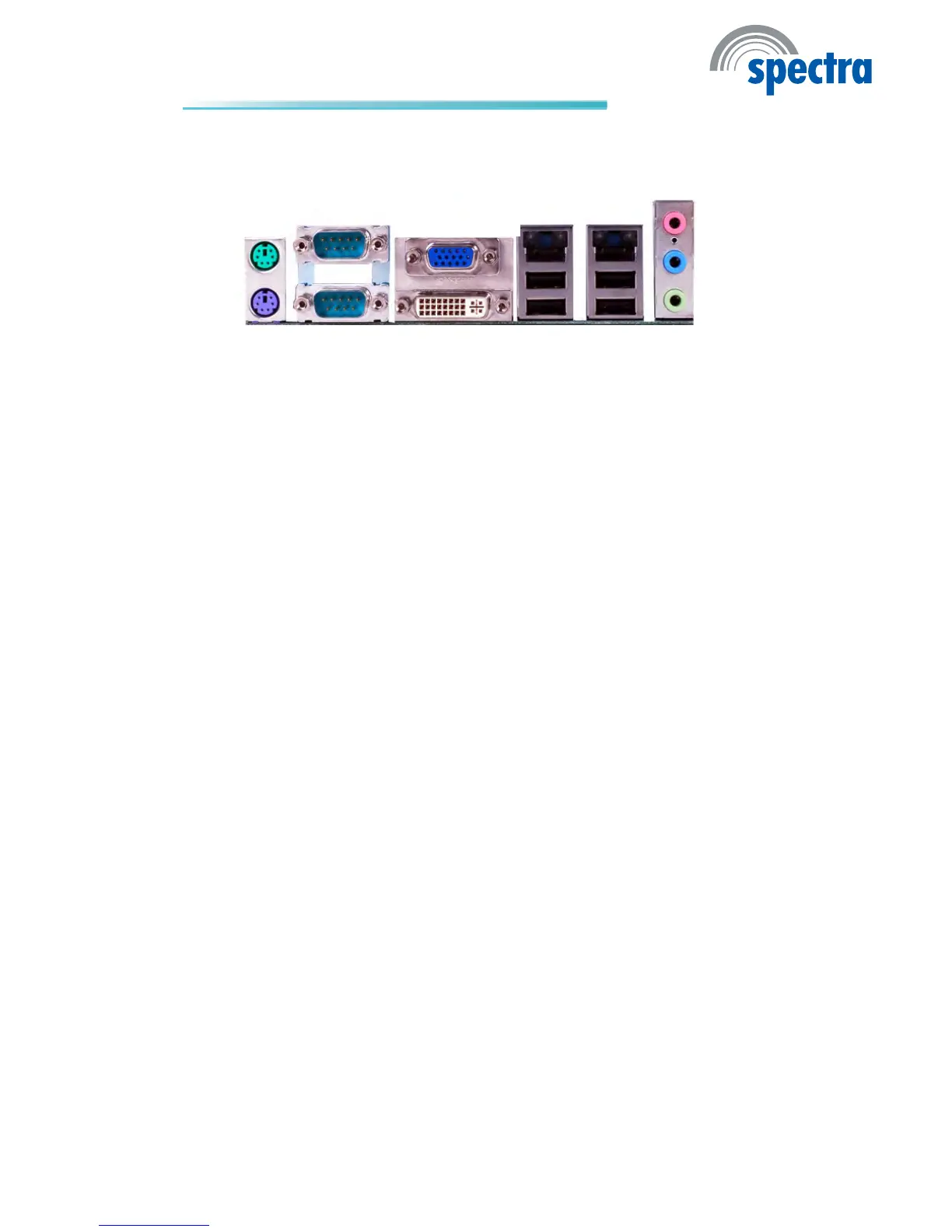

The rear panel I/O ports consist of the following:
• PS/2mouseport
• PS/2keyboardport
• 2COMports
• VGAport
• DVI-Iport(DVI-Dsignalonly)
• 1IntelLANport
• 1RealtekLANport
• 4USBports
• Mic-injack
• Line-injack
• Line-outjack
Line-in
Line-out
Mic-in
USB0-1
USB8-9
LAN1
(Intel)
COM2
PS/2
Mouse
PS/2
K/B
LAN2
(Realtek)
DVI-I
(DVI-Dsignalonly)
COM1
VGA
