XRV225kV Overview:

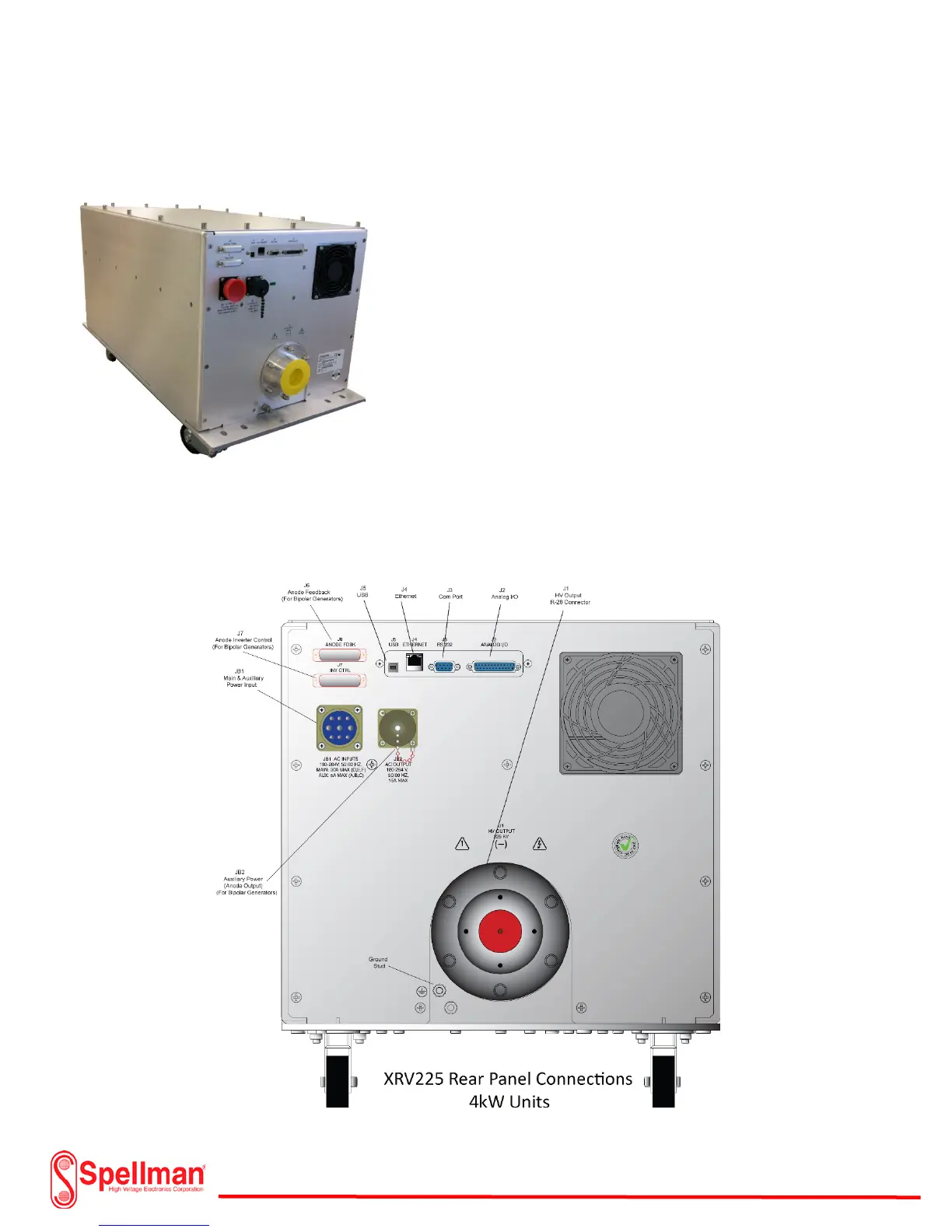

XRV225kV (Rear Panel)
The 225kV XRV Generator measures a compact 17” W x
18.90” (including castors) x H 30.72” D (excluding cable
well). The assembly includes lockable castors for easy
moving. The rear of the chassis has all of the necessary
connectors for power input, controls, monitoring, and kV
output. Each connector on the rear panel clearly marked
for installation purposes. The main and auxiliary input
includes an Amphenol style mating connector with an
additional DB-25 pin connector for the I/O analog
connection. The high voltage output mates with a
standard R-28 type connector. These are available from
Spellman High Voltage Corp. in different lengths and
configurations for installation of the X-ray tube. Standard Graphical User Interface (GUI) software is
included with the XRV 225 Generator. A personal PC is required for installation. The user has the option
of connection to a USB, Ethernet or Com Port. The control and monitoring of the XRV225 also includes
an analog I/O connector for custom configurations. An additional optional touch screen controller
(XRVC) is also available from Spellman High Voltage Corp..
