XRV225kV Overview: XRV225 (Front Panel)
The XRV225 front panel uses the same LED Indicators
as the XRV160 showing the status of the Generator.
Green Indicators signify normal operational mode
while red indicators signify a fault condition. A fault
or red indication prevents high voltage operation.
Fault conditions are “latched” meaning that a reset
must be employed before re-starting the generator.
Once the fault clears, the red indicator will
extinguish. Additionally, fault status and ready
conditions are monitored from the I/O connector on
the rear panel and the GUI Interface software. A
removable air filter keeps dust and dirt from entering
the chassis.

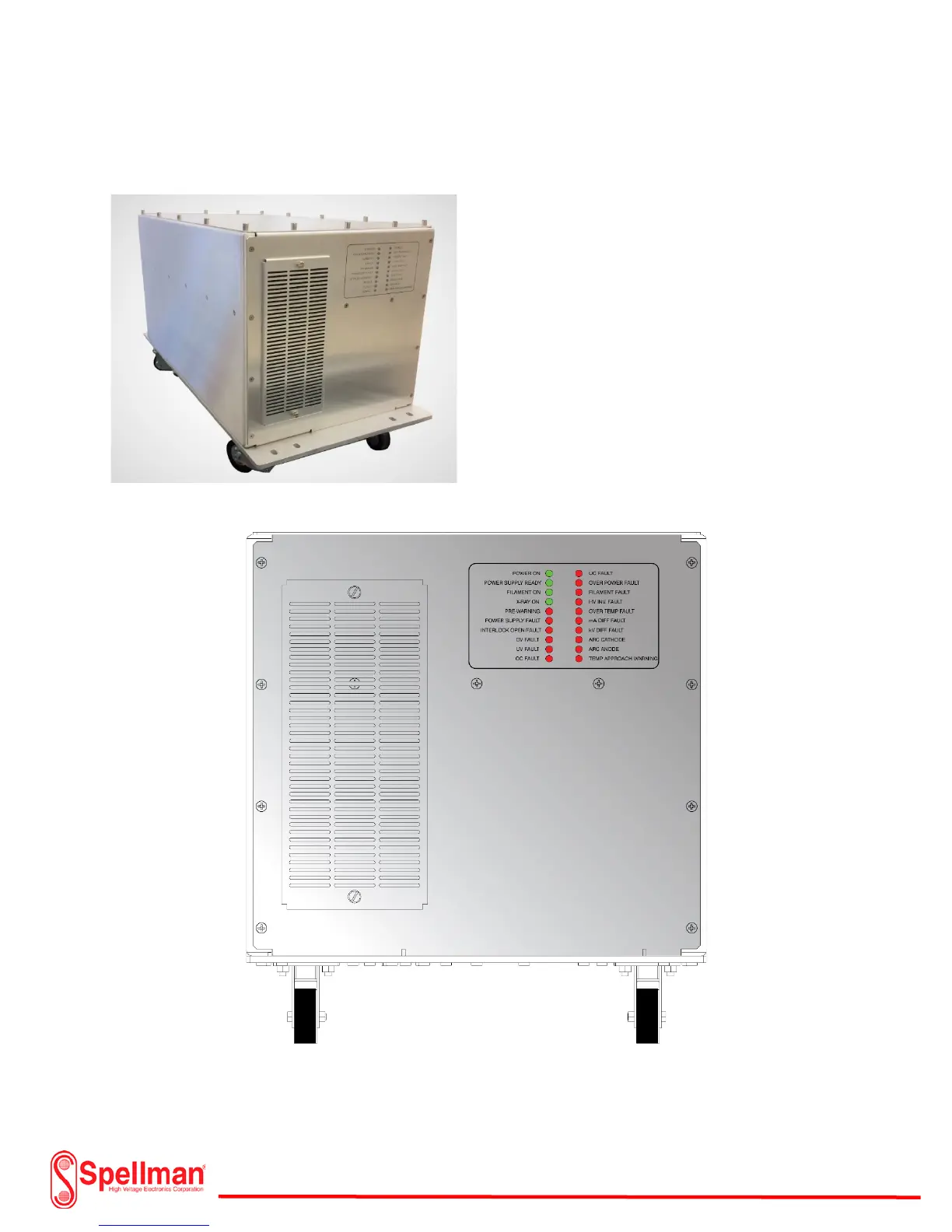

XRV225 Front Panel Indicators
