Page 96 of 98
118157-001 Rev C

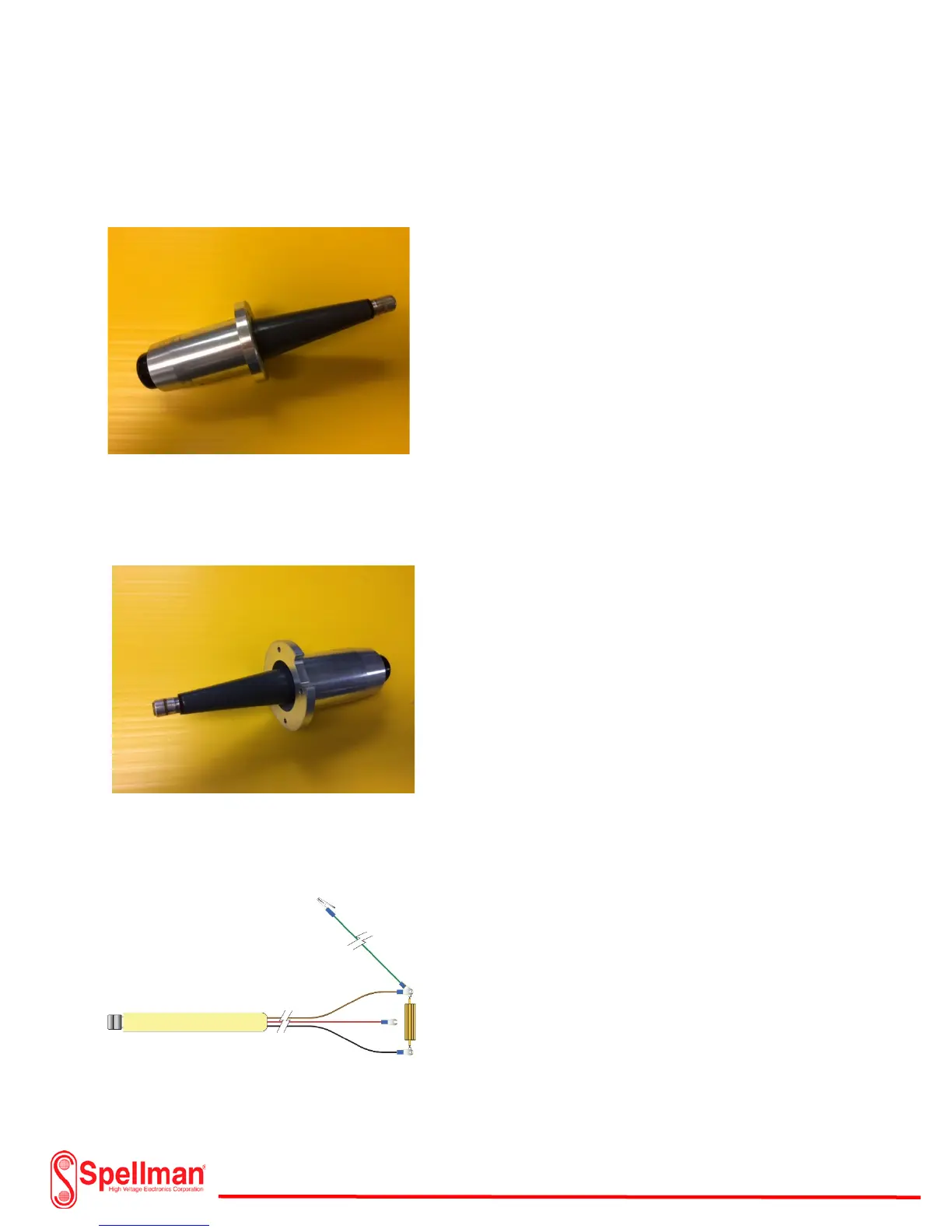

Accessory Test Kits for XRV Generators:
XRV-14-1 (R24 Dummy/Blanking Plug)
R24 test plug useful for evaluating or troubleshooting
XRV160 model generators or X-ray tube functionality. The
plug is inserted into the high voltage receptical and allows
for operation of the XRV Generator without the X-ray tube
load.
XRV-14-2 (R28 Dummy/Blanking Plug)
R28 test plug useful for evaluating or troubleshooting
XRV225 model generators or X-ray tube functionality. The
plug is inserted into the high voltage receptical and allows
for operation of the XRV Generator without the X-ray tube
load.
XRV-14-3 (Filament Adapter with Resistor)
XRV filament power supply calibration tool utilizing a
resistive load for filament current calibration and
verification. For use with both the XRV160 and XRV225
models. Customer supplied voltmeter is required.
