Spellman XRV Sub-system - XRV 160 kV Generator; Rear Panel Connectors and Features

Page 10 of 98
118157-001 Rev C
XRV 160kV Overview:

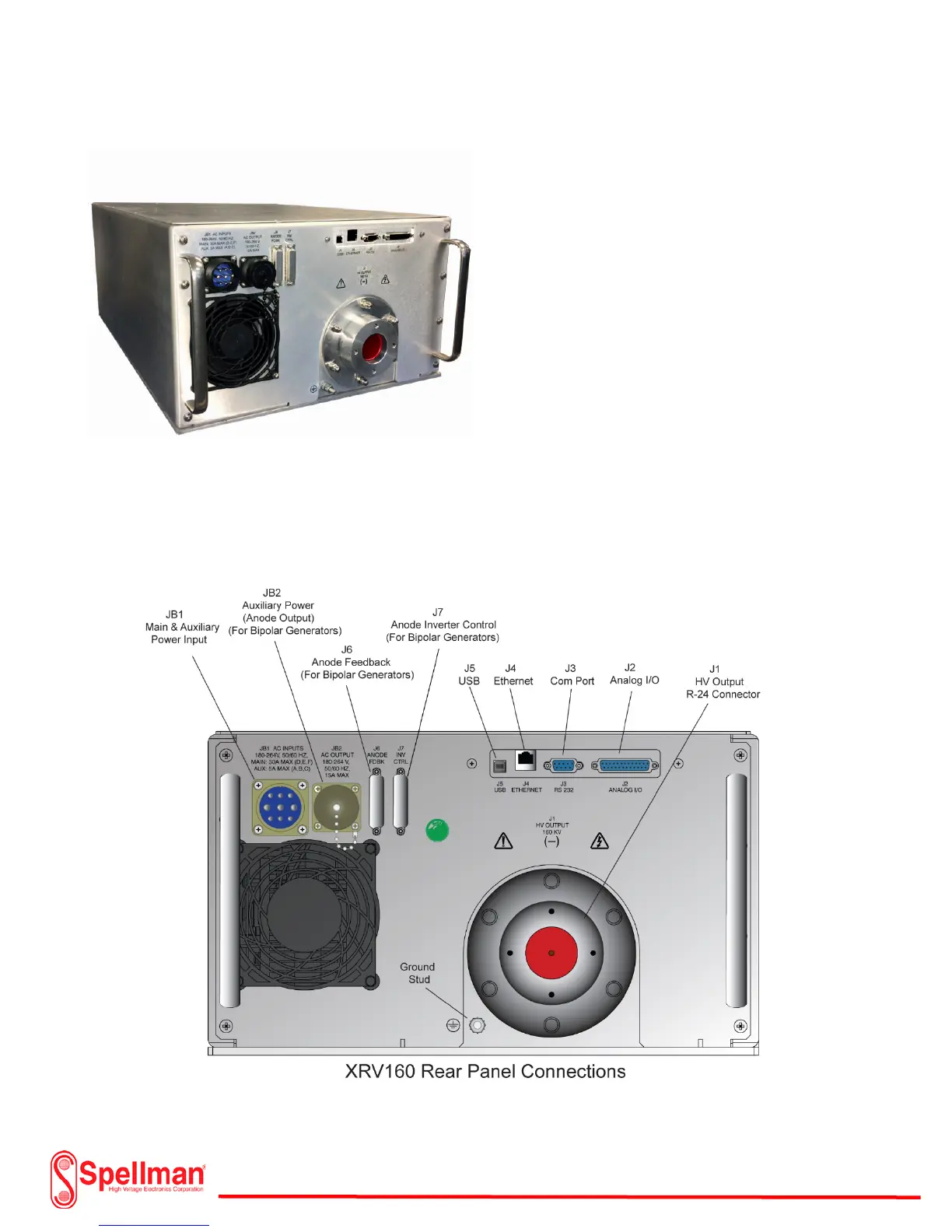

XRV160kV Rear Panel
The 160kV XRV Generator measures a compact
7.16” W x 10.09” x H 24” D (excluding handles).
The rear of the chassis has all of the necessary
connectors for power input, controls, monitoring,
and kV output. Each connector on the rear panel
is clearly marked for installation purposes. The
main and auxiliary input includes an Amphenol
style mating connector with an additional DB-25
pin connector for the I/O analog connection. The
high voltage output mates with a standard R-24
type connector. These are available from Spellman
High Voltage Corp. in different lengths and configurations for installation of the X-ray tube. Standard
Graphical User Interface (GUI) software is included with the XRV 160 Generator. A personal PC is
required for installation. The user has the option of connection to a USB, Ethernet or Com Port. The
control and monitoring of the XRV160 also includes an analog I/O connector for custom configurations.
An additional optional touch screen controller (XRVC) is also available from Spellman High Voltage Corp..
4kW Units
