Page 9 of 98
118157-001 Rev C
XRV Generator:
A double ended or “Bipolar” X-ray tube requires two separate XRV Generators. One Generator has a
negative output with respect to ground while the other has a positive output with respect to ground.
The software provided or analog selection allows for the operation of both the positive and negative

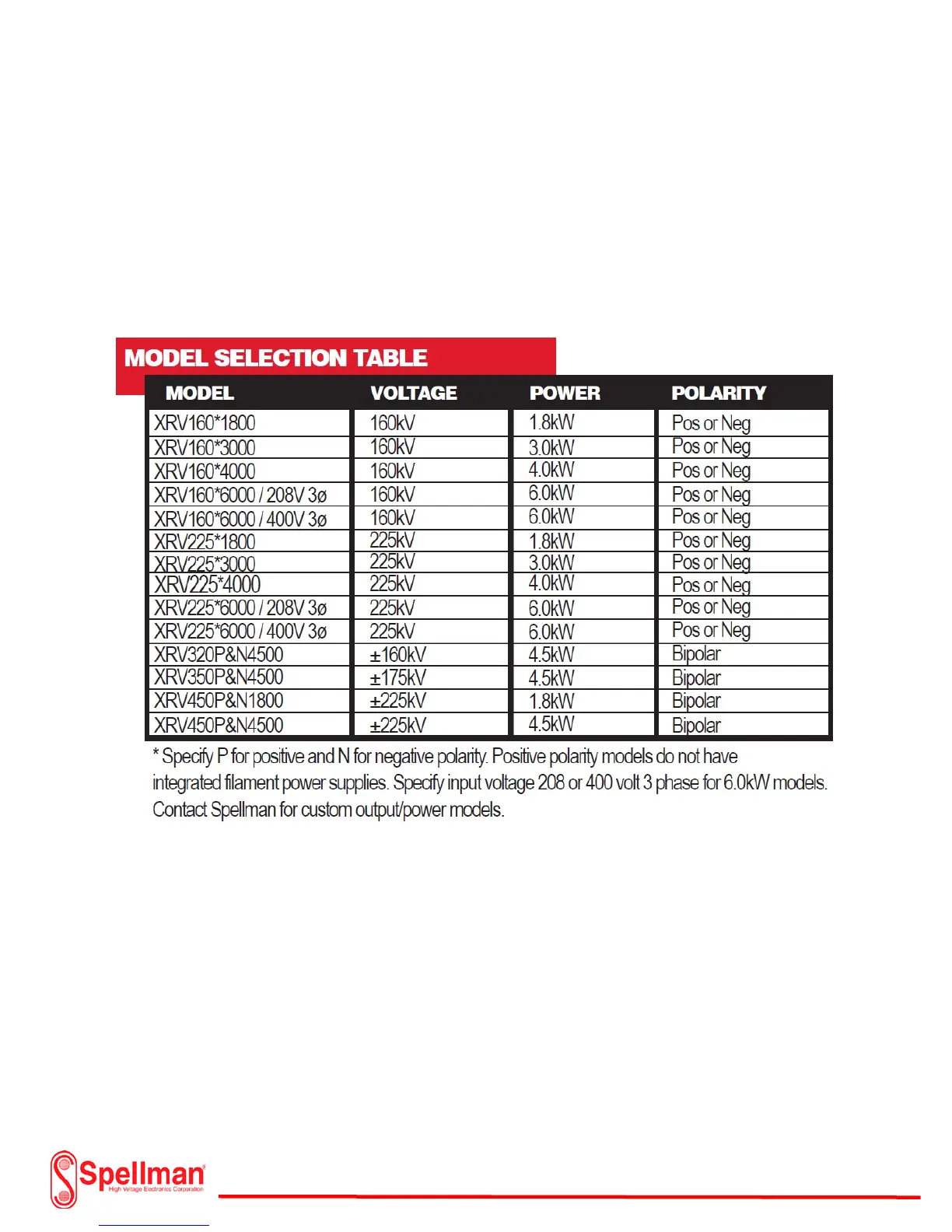

outputs simultaneously with a minimal amount of imbalance. There are several models of the XRV
Generator available. These are listed below.
