Page 60 of 98
118157-001 Rev C

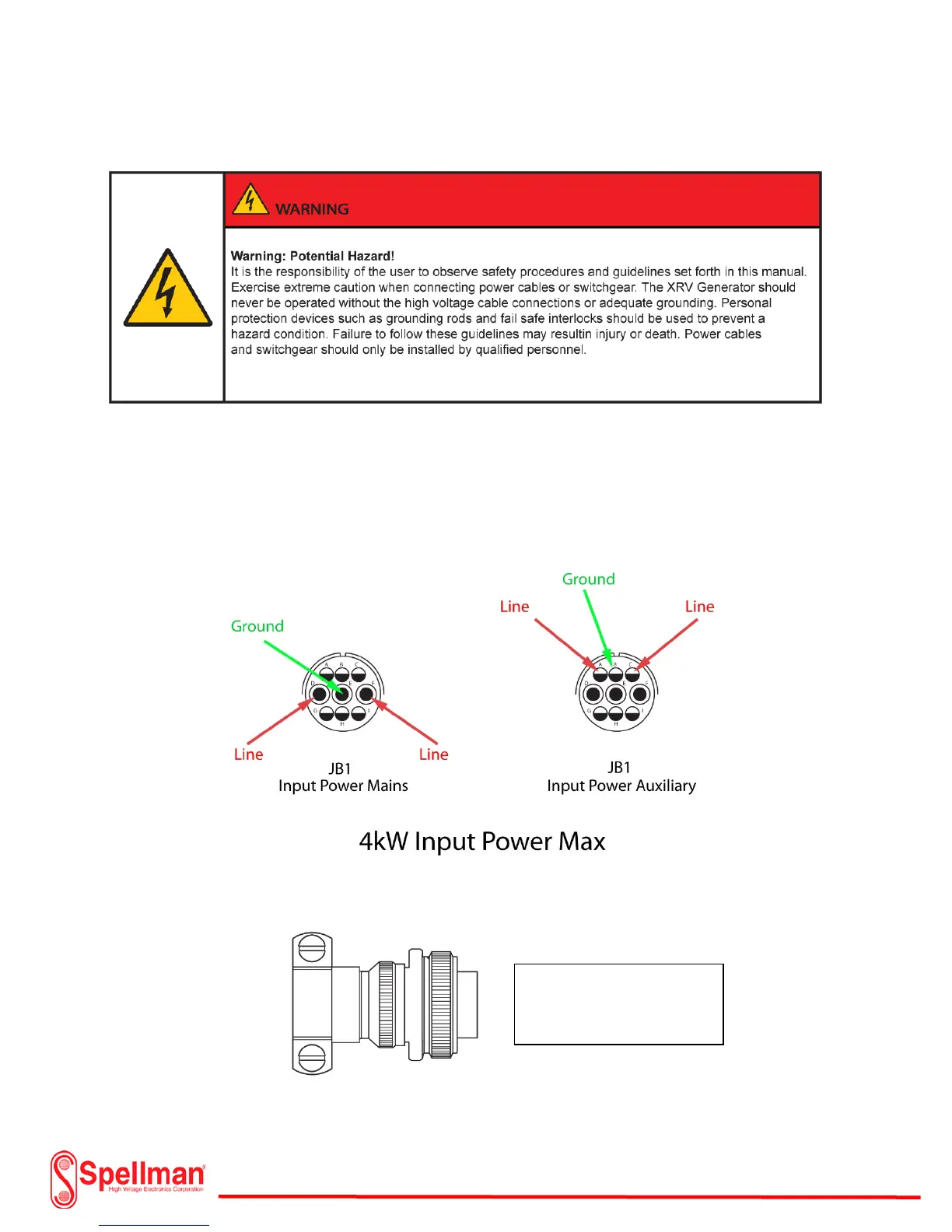

Power Connections (Unipolar Basic):
Amphenol style connectors are included with the XRV Generator for connecting power to the unit.
There are two types of connectors. Up to 4 kilowatt generators use an Amphenol MS3106A-24-11S
straight connector for connecting input power. The 6 kilowatt generator requires a 3 phase input and
uses two separate connectors. One connector is for the Mains Input and the remaining is for the
Auxiliary Input.
MS-3106A-24-11S
Connector & Clamp
