XRVC Controller Overview:
The XRVC Controller uses an embedded computing
system that runs a custom graphical use (GUI) interface
and allows the user to configure custom X-ray tube
profiles for any of the Spellman XRV series. The unit,
housed in a 19”W x 5.25” H x 13” D (ex. connectors)
features a 7” touch screen, RS-232 serial ports,
10/100/1000Mbit Ethernet and a 160GB hard drive. The
Intel Atom N270 CPU processor runs at an impressive
1.6GHz and includes 1GB of static Ram. The user has the
ability to create, save and load customized profiles for
use within the operating capabilities of the XRV
Generators. The intuitive, touch-centric, menu driven system allows ease of use with little or no learning
curve. Communication settings are stored after only one system configuration session. Parameter
settings on supported X-ray tubes may be automatically uploaded to the XRVC within the recommended
manufacturer guidelines. A comprehensive status and control screen continuously monitors
information on all critical operation parameters. An integrated on screen keyboard eliminates the need
for an external keyboard. The input voltage is 180-264Vac, 50/60Hz easily integrating with the Spellman
I/O System Interface Box.

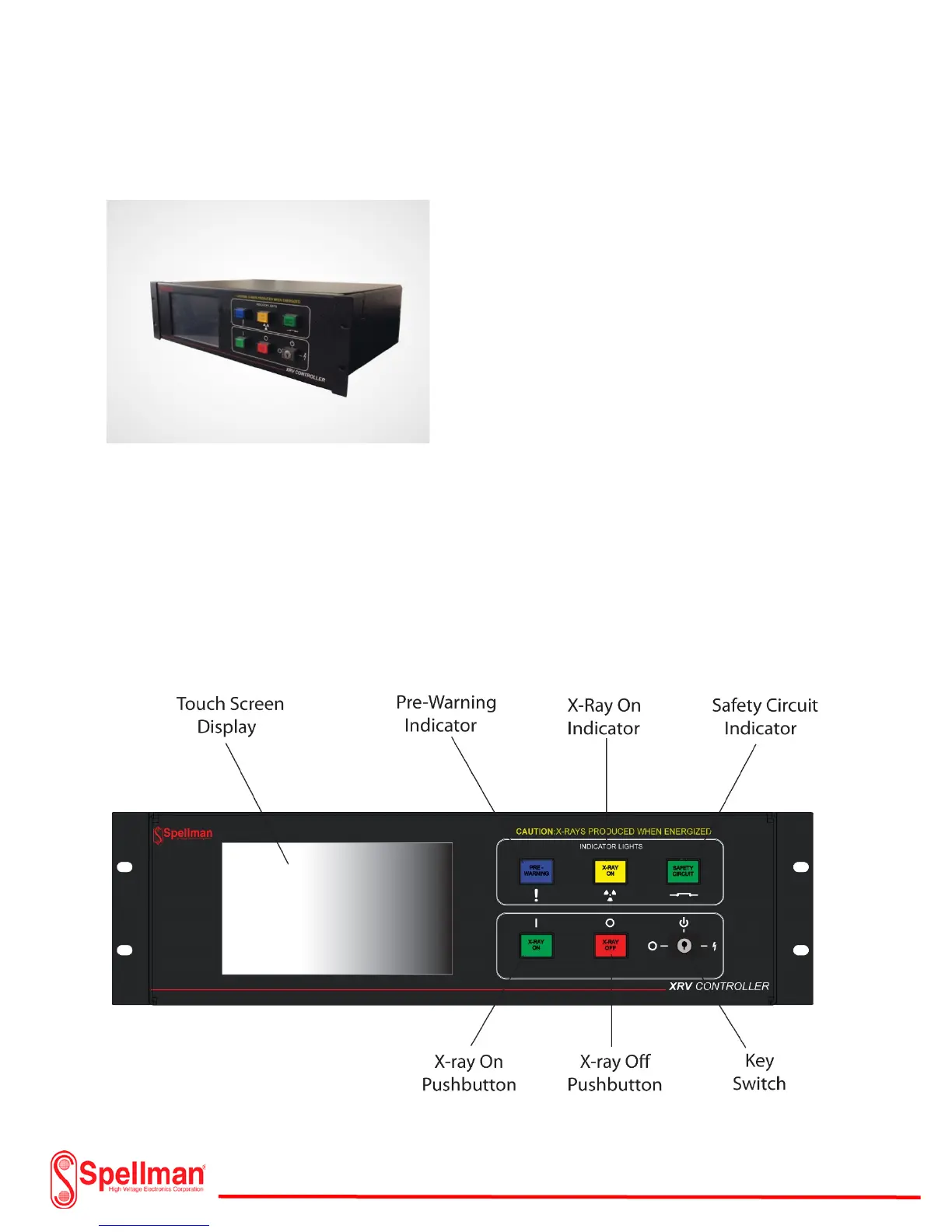

XRVC Controller Front Panel Detail
