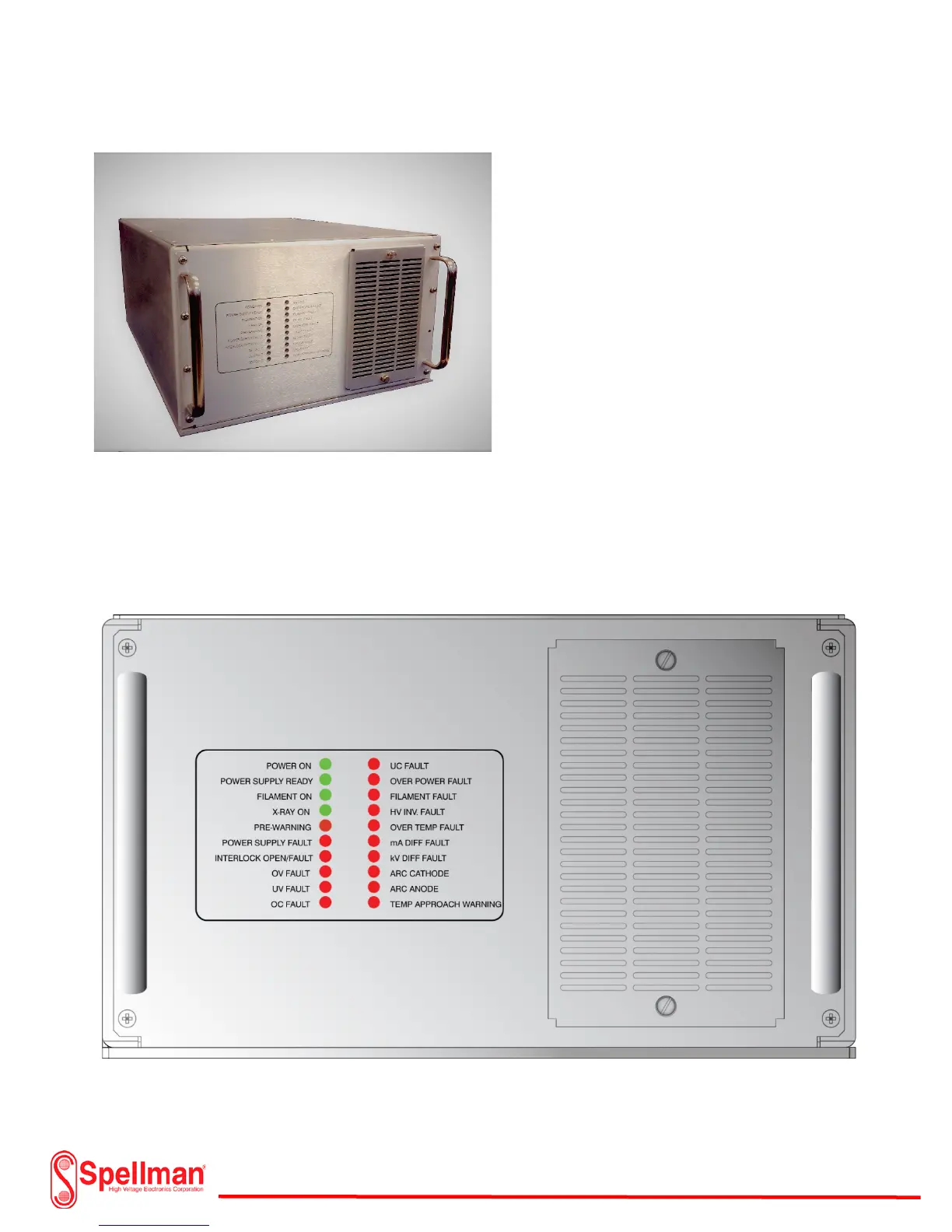

XRV 160kV Overview : XRV160 (Front Panel)
The XRV160 front panel uses LED Indicators that
show the status of the Generator. Green
Indicators signify normal operational mode
while red indicators signify a fault condition. A
fault or red indication prevents high voltage
operation. Fault conditions are “latched”
meaning that a reset must be employed before
re-starting the generator. Once the fault clears,
the red indicator will extinguish. Additionally,
fault status and ready conditions are monitored
from the I/O connector on the rear panel and
the GUI Interface software. A removable air
filter keeps dust and dirt from entering the
chassis.
XRV160 Front Panel Indicators
