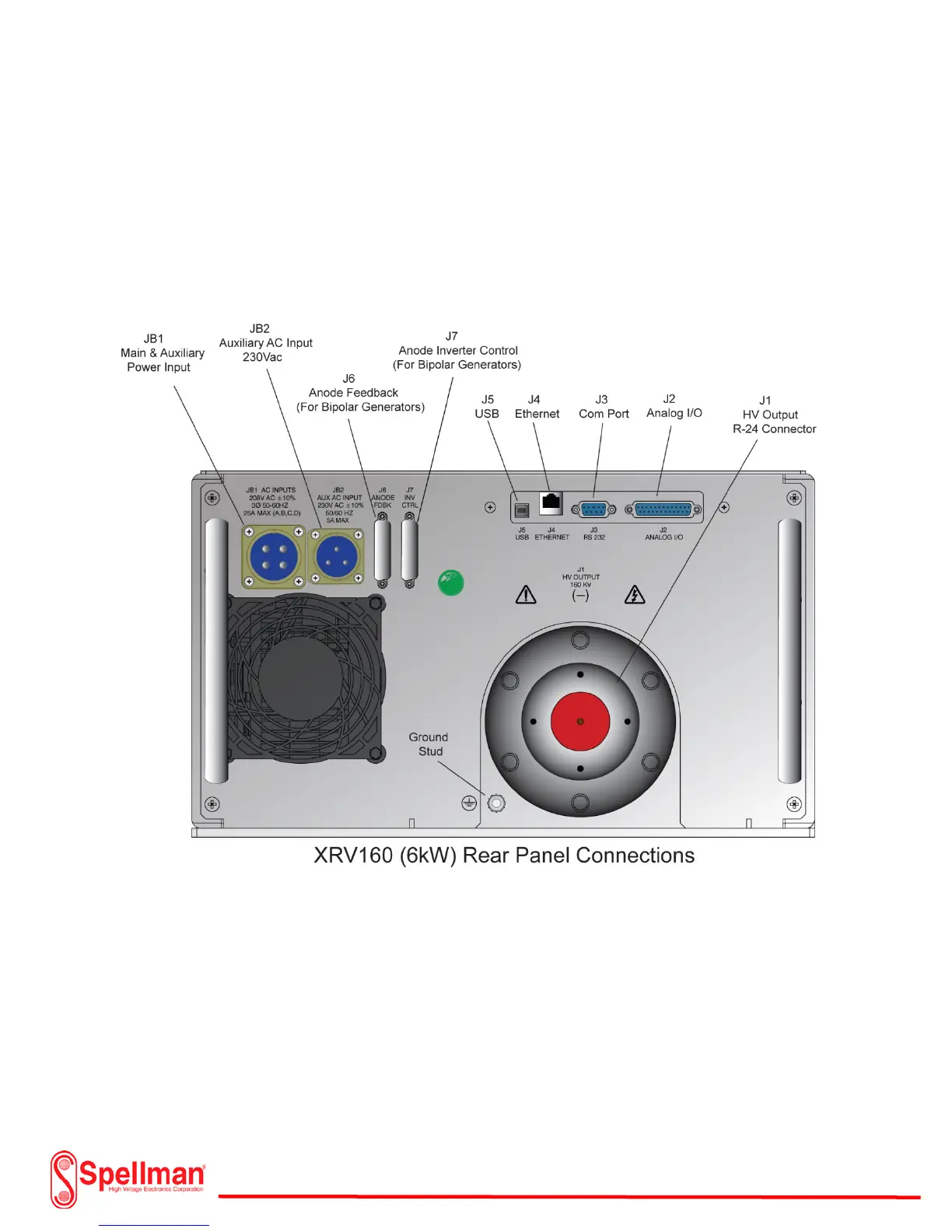

XRV 160kV Overview:
The 160kV XRV is additionally available in a 6kW version. The 6kW version uses a 208 Vac 3Ø power
input or a 400Vac 3Ø power input. The chassis overall size is the same as the 4kW version. The only
difference between the 6kW version and the 4kW version is the power input connections. Two
connectors separate the Mains from the auxiliary power input. Amphenol style power mating
connectors are included with all XRV models.
208Vac 3Ø Input
