Page 23 of 98
118157-001 Rev C
XRV450 Overview :
XRV450 (Front Panels)
The cathode (negative) generator front panel of the
XRV450 model uses the same LED Indicators as the
unipolar XRV225 showing the status of the
Generator. Green Indicators signify normal
operational mode while red indicators signify a fault
condition. A fault or red indication prevents high
voltage operation. Fault conditions are “latched”
meaning that a reset must be employed before re-
starting the generator. Once the fault clears, the red indicator will extinguish. The anode (positive)
generator does not have any indicators since all of the monitoring and fault status indicators originate
from the control board within the cathode (negative) generator. Additionally, fault status and ready
conditions are monitored from the I/O connector on the rear panel and the GUI Interface software. A
removable air filter keeps dust and dirt from entering the chassis.

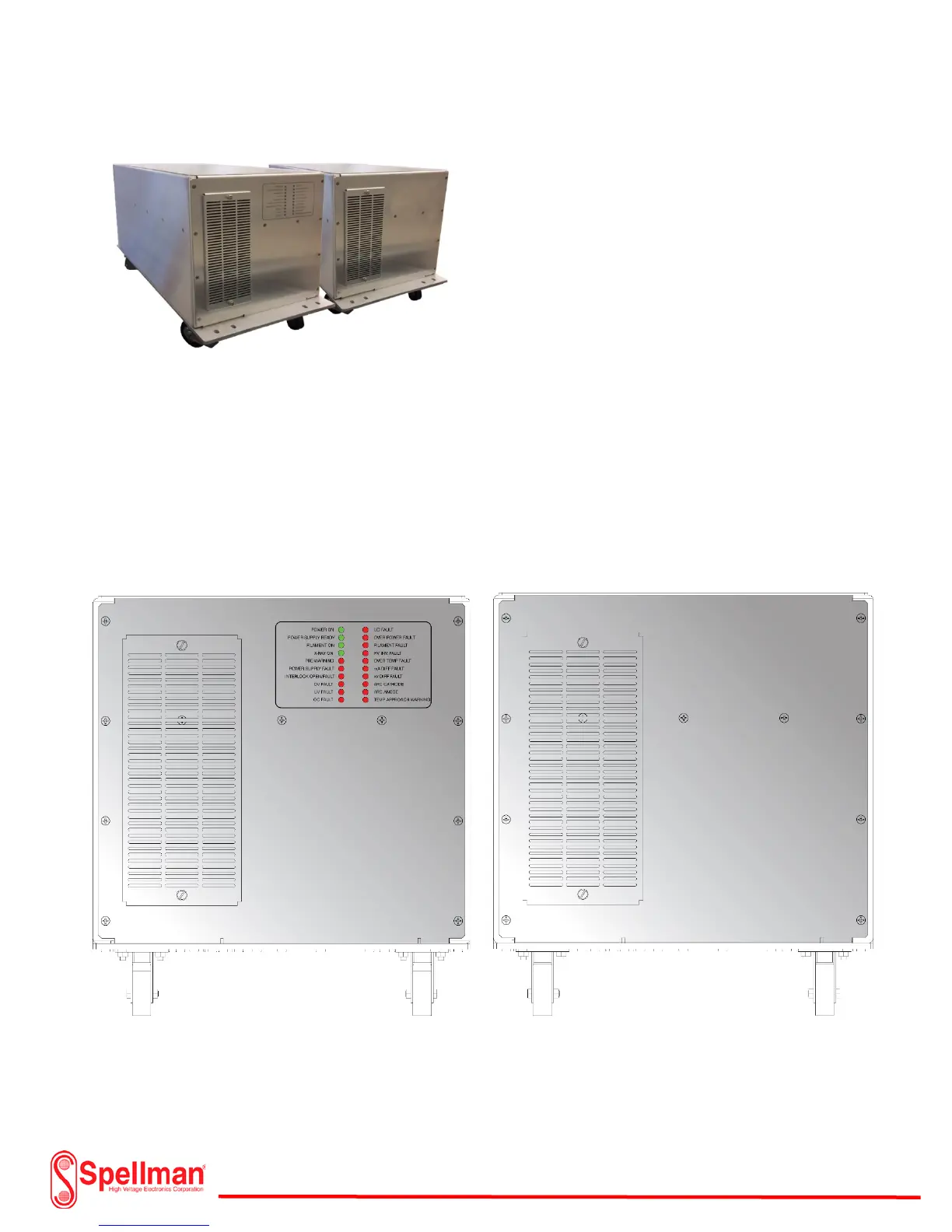

Front Panel Detail
XRV450 Cathode XRV450 Anode
