Page 41 of 98
118157-001 Rev C
System Grounding:
ground. Strip and crimp #10 ring lugs on another #10 AWG wire to connect from the XRV generator to
earth ground. Keep this wire as short as possible.
If the Generator is a bipolar model, a ground wire with lugs (supplied) connect between the Anode
(Positive Generator) and the Cathode (Negative Generator) chassis ground. If the system includes the
I/O Subsystem Box and the Controller, connect the Controller ground using #10 AWG wire and
appropriate ring lugs to the I/O Subsystem. Run another ground from the I/O Subsystem Box ground lug

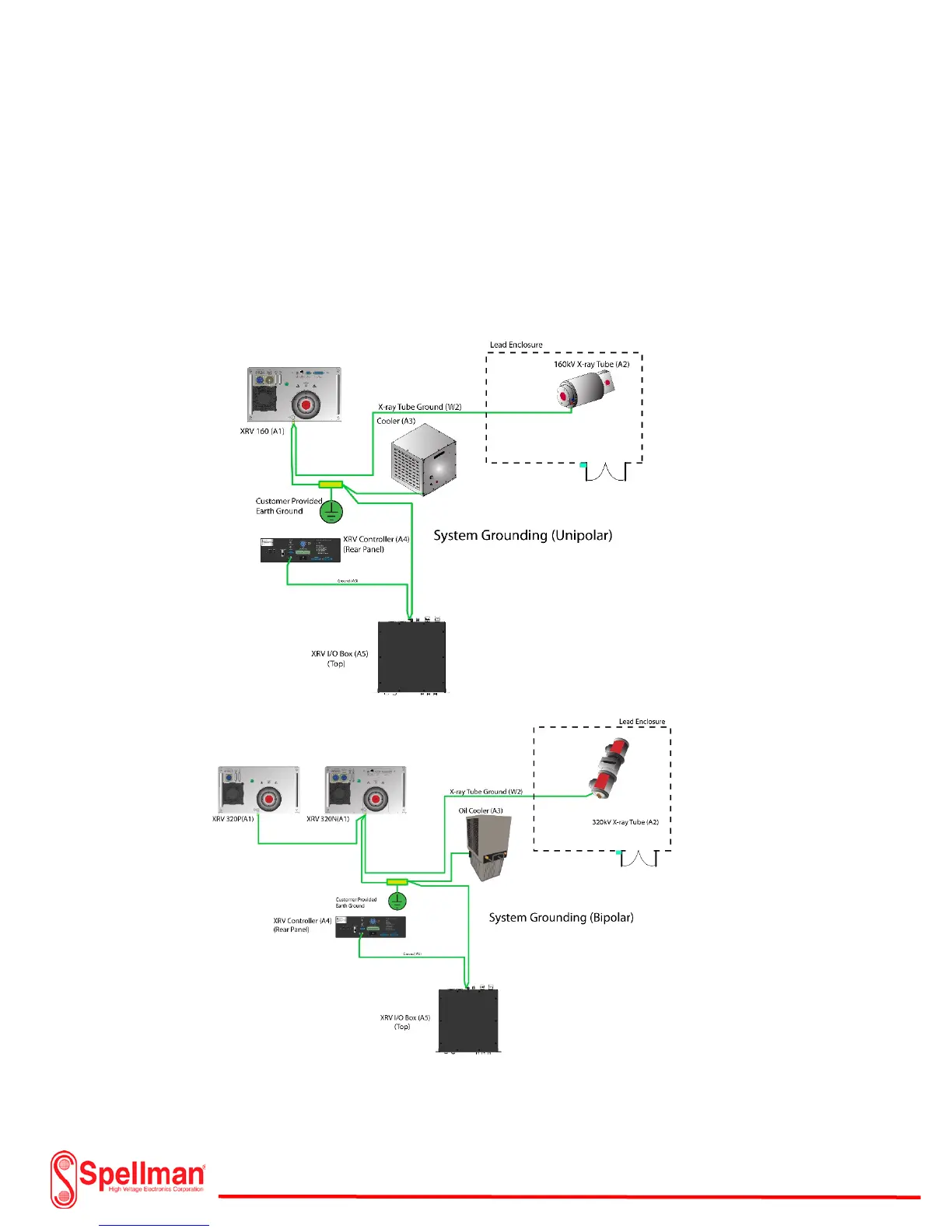

to earth ground. The grounding system should look like the following diagram for a unipolar system.
