Page 47 of 98
118157-001 Rev C

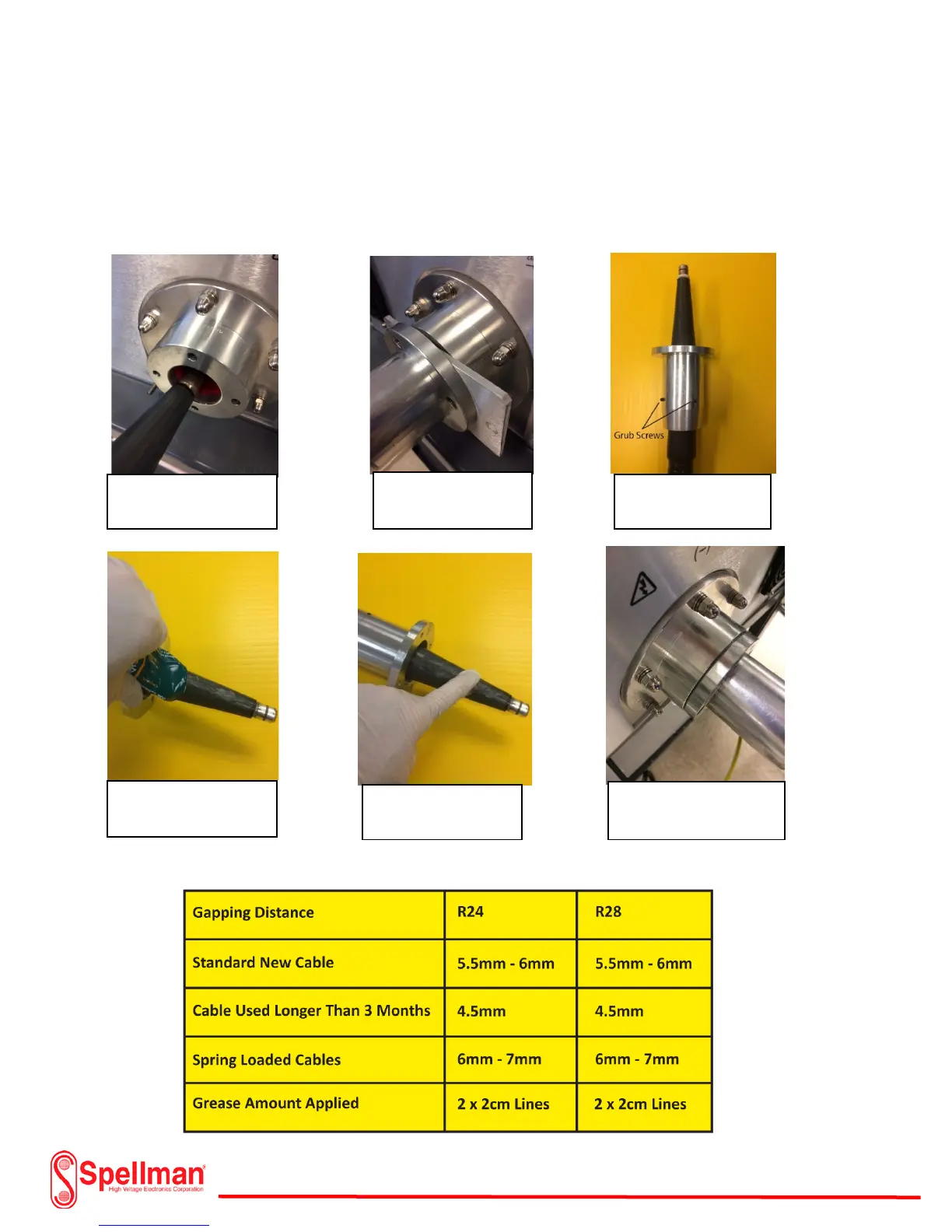

High Voltage Cable Installation (XRV Generator):
Repeat the assembly procedure as previously described on the opposite end of the high voltage cable
plug. The only notable difference is that the gapping tool will sit flush against the high voltage cable
receptacle when adjusting the flange. The tube receptacle has a collar that the flange fits over, while the
XRV Generator flange will sit flush against the receptacle.
High Voltage
Cable Gapping
Distances:
Insert dry HV cable
plug in XRV receptacle
Adjust flange with
gapping tool
Apply 2 beads of
silicone compound
Spread compound
evenly with finger
tighten flange screws
