Place the connector carefully into the X-ray tube receptacle without scraping any of the silicone from
the cone. Tighten the cable flange screws, alternating between the opposing placed screws.

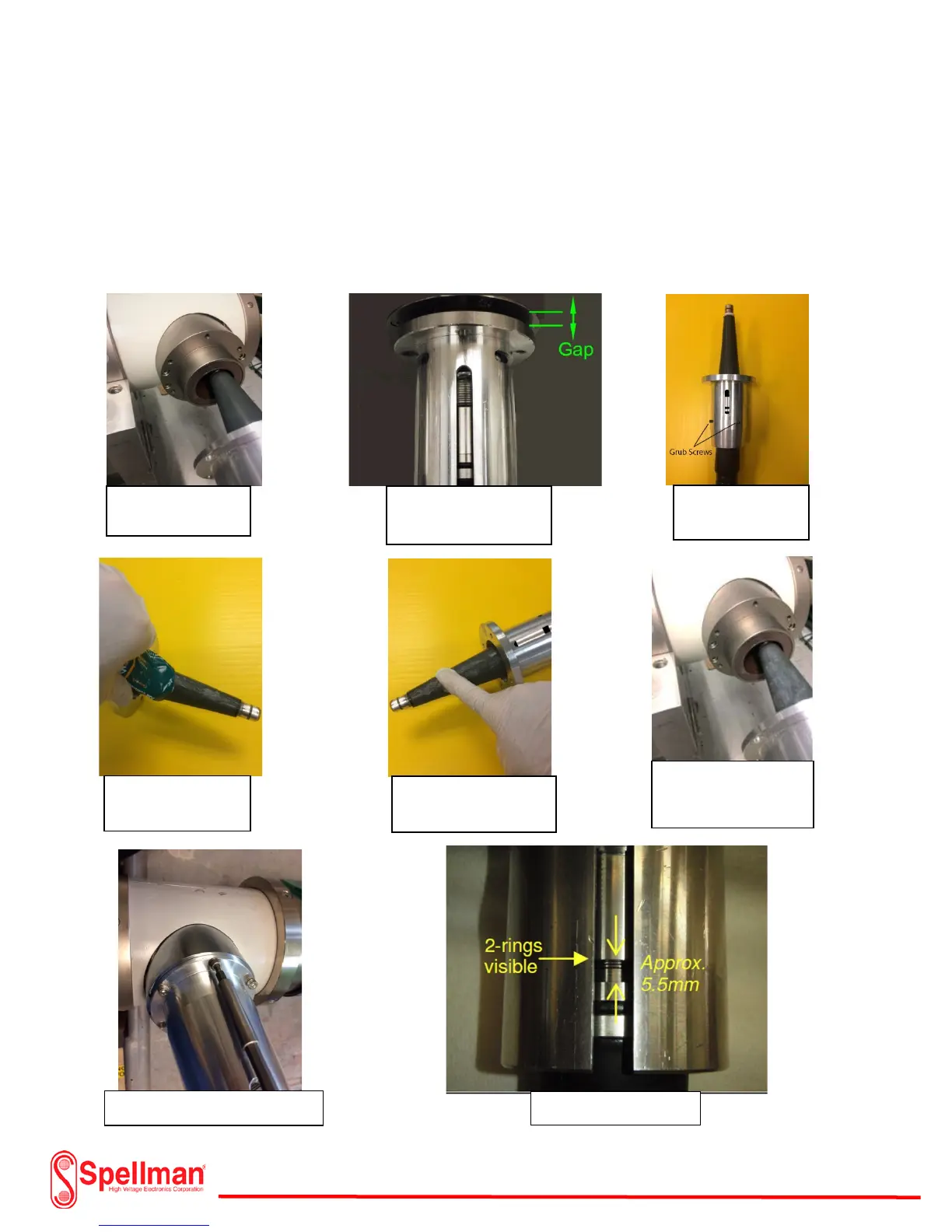

Spring Loaded High Voltage Cable Installation:
If a cable flange with a window is used, verify the correct compression was achieved by verifying 2 rings
are visible through the cable flange window. If not, reset the gapping distance until 2 rings are visible
(approx. 5.5mm displacement). Repeat this installation for the XRV Generator side of the cable.
Insert dry HV cable
plug into X-ray tube
proper gapping
Tighten cable flange screws
Apply 2 beads of
silicone
evenly with finger
in tube receptacle
