Interlock, Communication Connections (Unipolar Basic):
initiate a “fault reset” to clear the condition. If the fault condition still exists, the high voltage is unable
to be enabled until the fault is cleared and a reset is initiated. Some common interlocks include x-ray
chamber access, chiller/cooler water flow, chiller / cooler water temperature and ambient temperature.

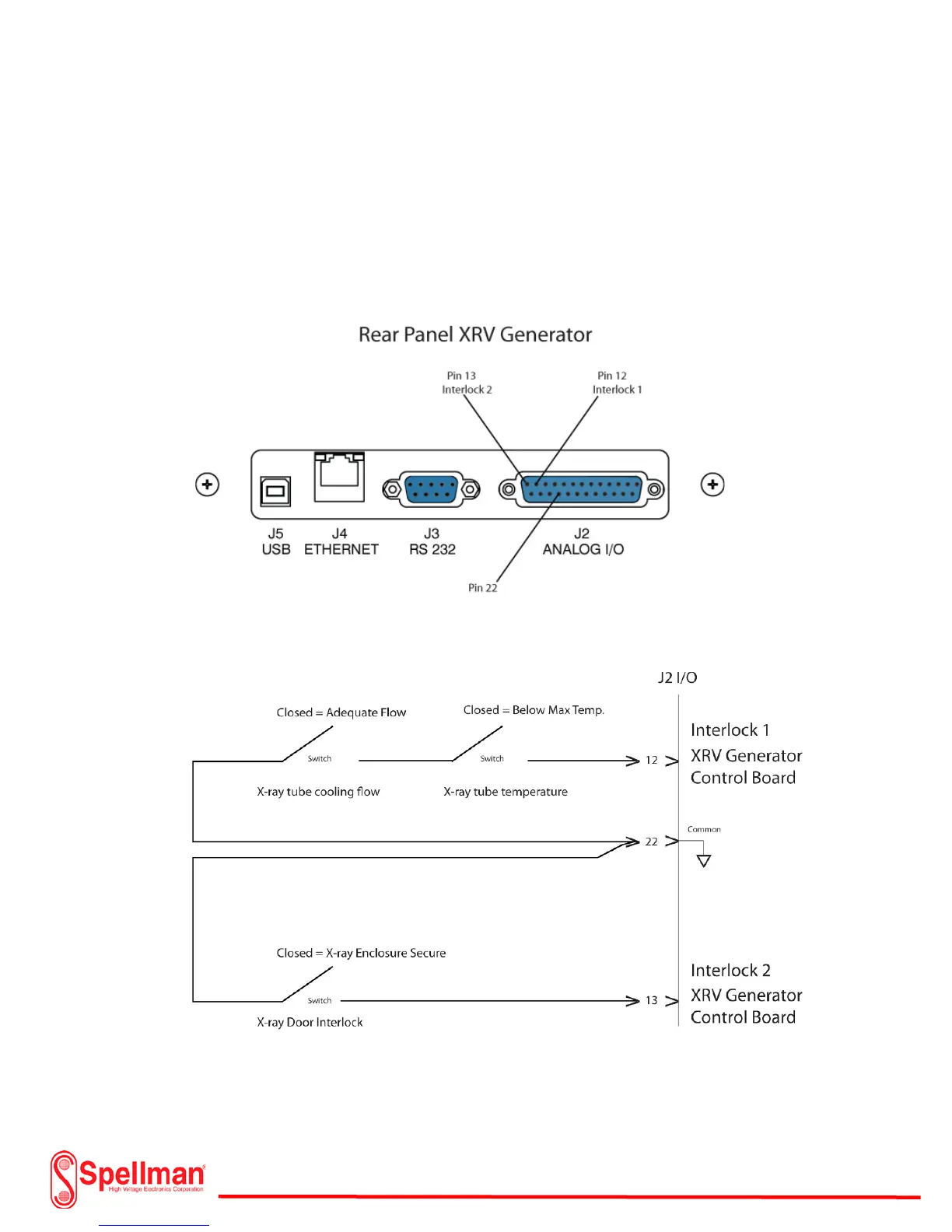

Typical Interlock Connections
