Power Connections (Unipolar Basic):
The input power connections for the 6 kilowatt XRV Generator is the same procedure as above with the
exception of the additional connector and different wire size. Check all power connections to the XRV
Generator before any connections to the mains and auxiliary power source.
Note: The cooler / chiller system will have instructions on cable sizing for power connections and
interlock connections.

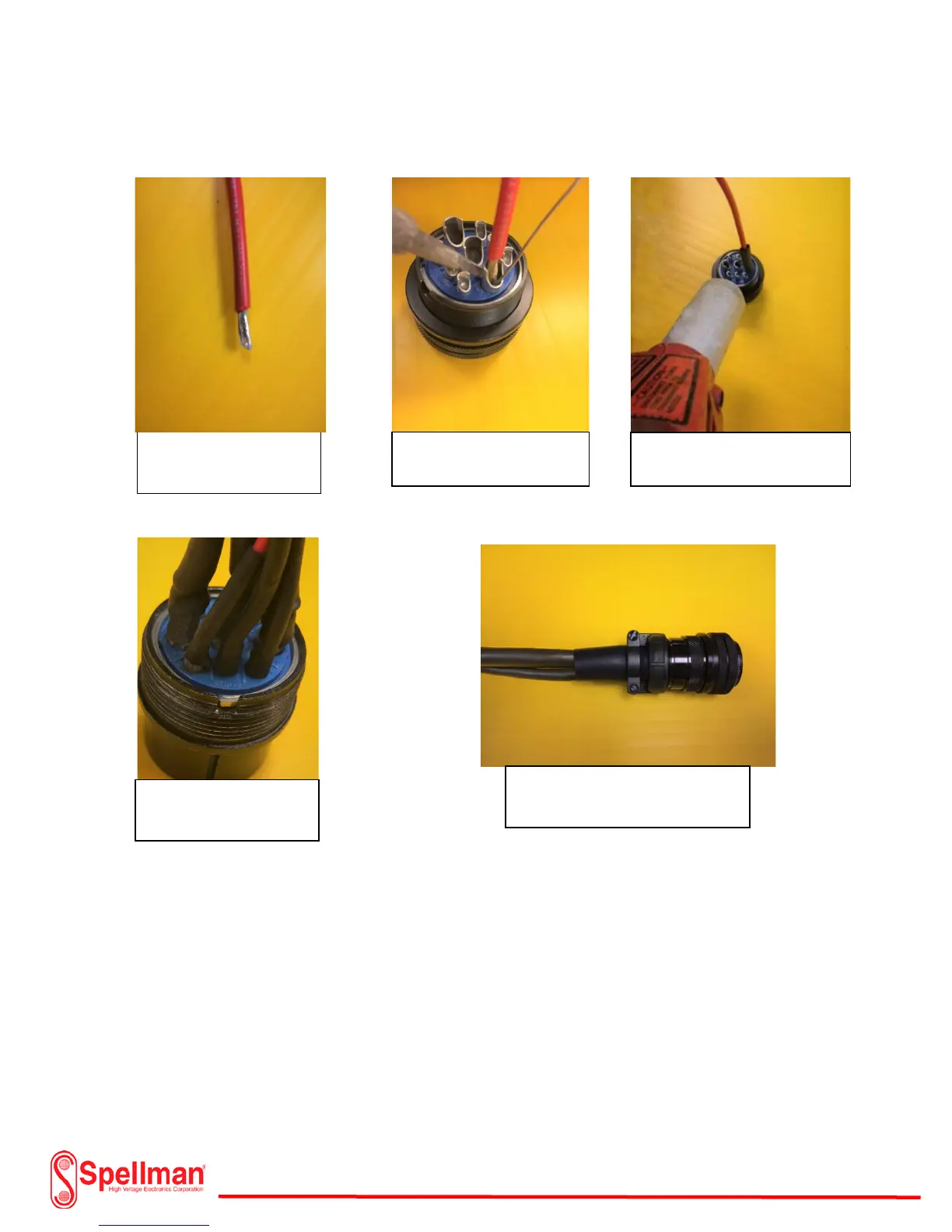

Appropriate Size Wire
Insert Wire into Pin Cup
and Apply Solder
Slide Shrink Tubing Over
Solder Cup and Apply Heat
Soldered Connections
Completed XRV Cable, Clamp
and Rubber Shroud
