Page 88 of 98
118157-001 Rev C
X-Ray Tube Filament Calibration:

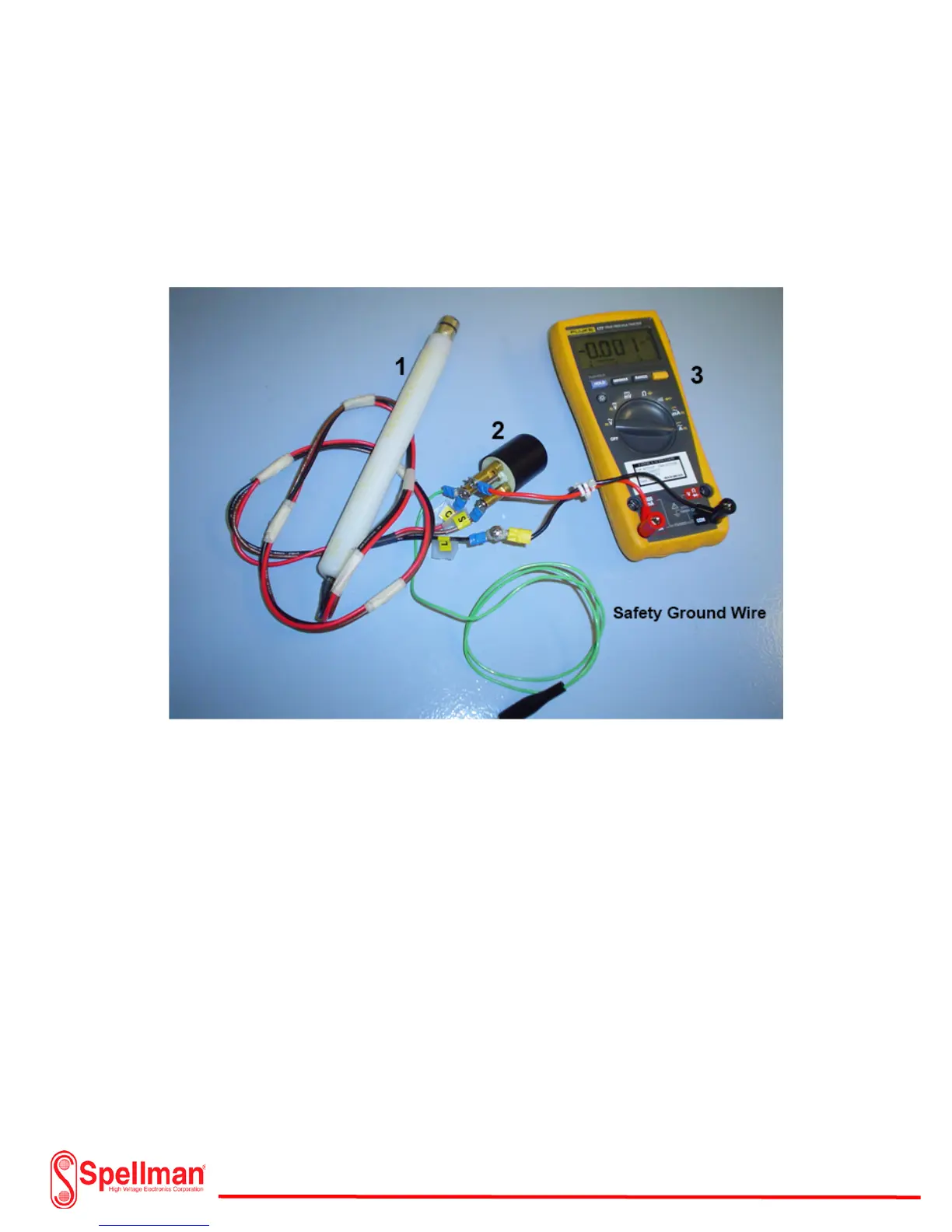

Test equipment required:
1=Measuring Adapter for high voltage socket
2= Measuring Adapter for high voltage cable plug
3= Digital Multimeter (Customer Supplied)
C=Common Connection, L= Large Filament Connection, S= Small Filament Connection
