X-Ray Tube Filament Calibration Using GUI:
1) Connect the filament calibration for the large or small filament as shown in the diagram. Make
sure the common is connected to earth ground.
2) Energize the Auxiliary circuit breaker to the XRV Generator.
Do Not Energize the Main Circuit Breaker!
3) Launch the supplied XRV software and verify the XRV Generator is communicating with the GUI.

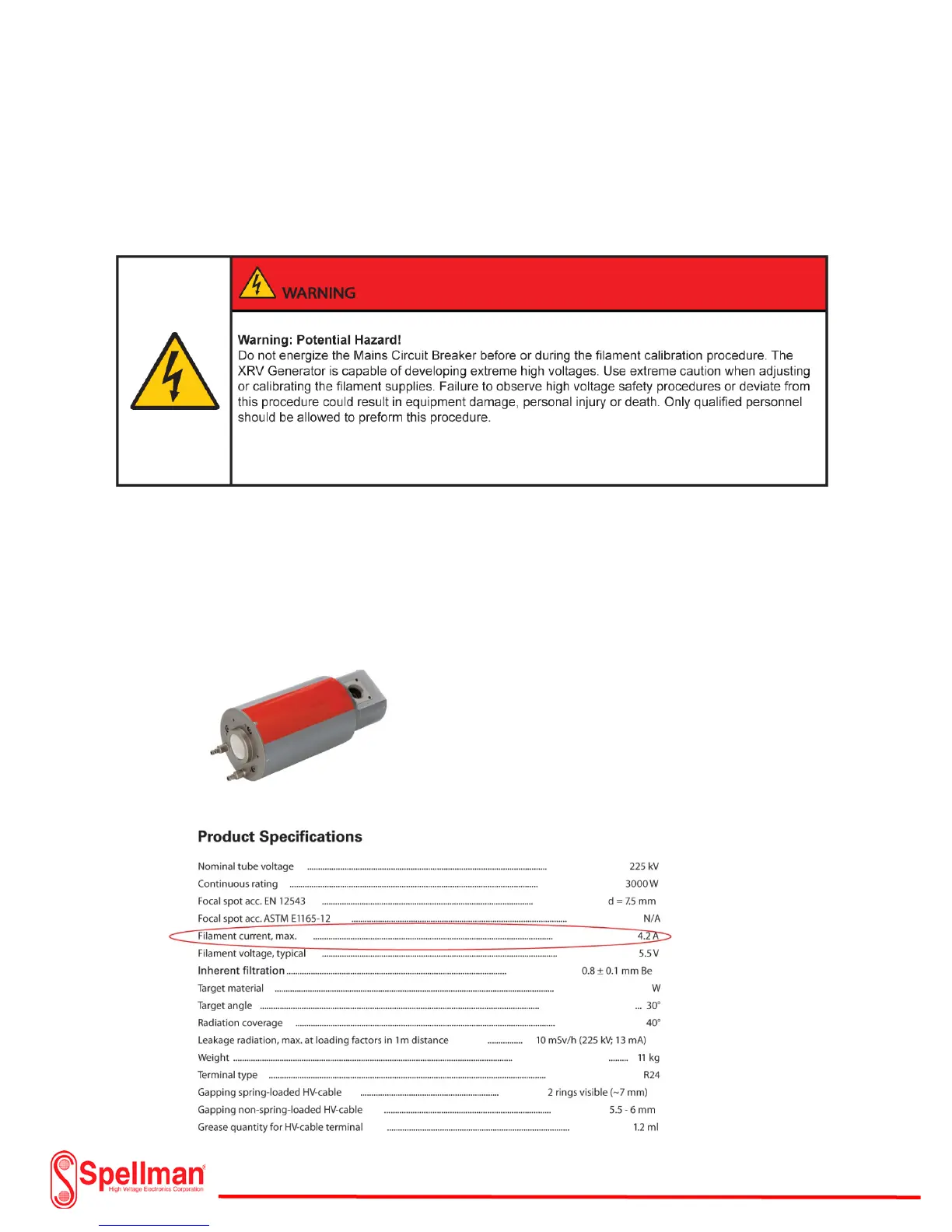

4) Refer to the manufacturer’s X-ray tube specification and verify the maximum current for the
filament.
