Spellman XRV Sub-system - Adjusting Filament Current and Preheat

Page 93 of 98
118157-001 Rev C

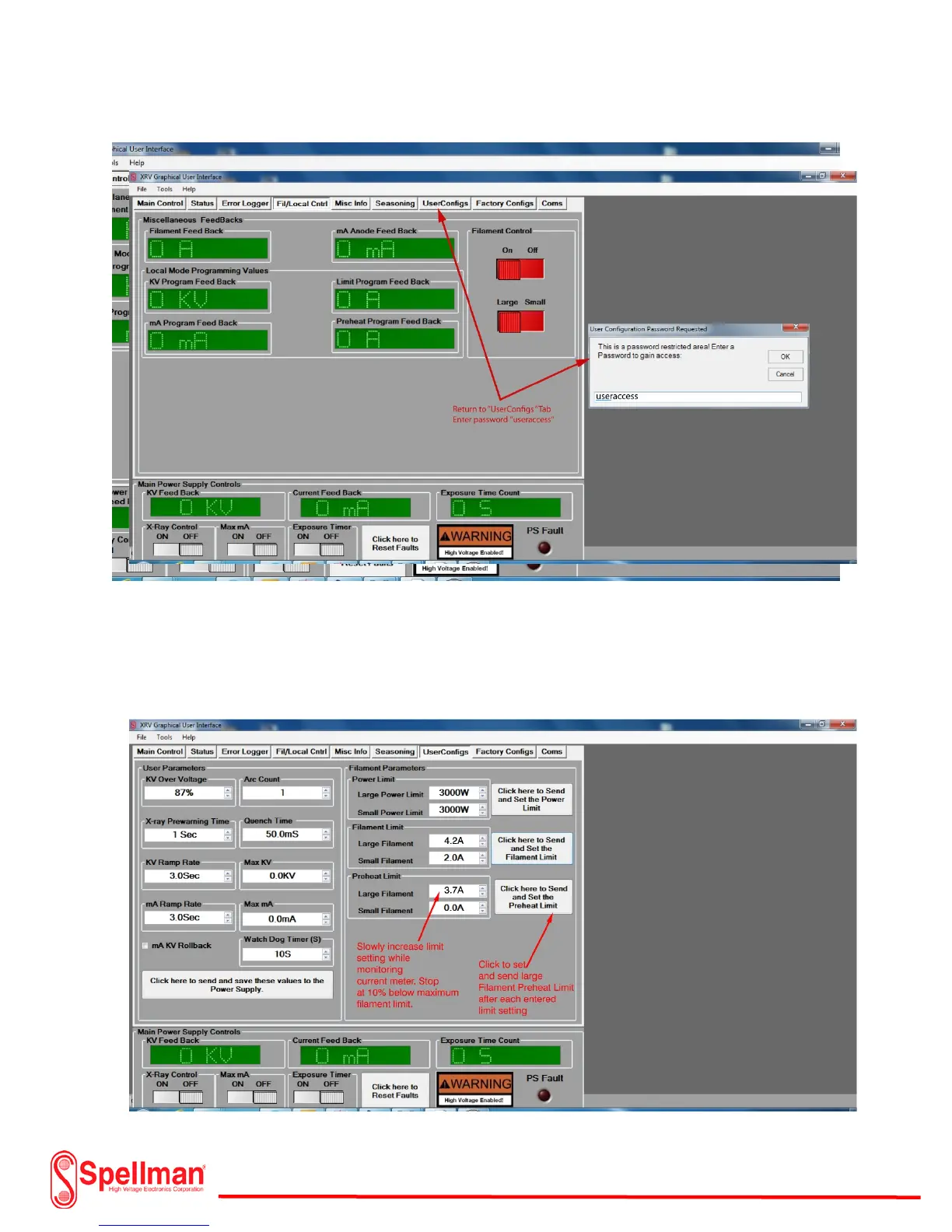

9) Return to “UserConfigs” tab and enter password.
10) Starting from 0 current, slowly increase the Large Filament current Pre-heat setting while
monitoring the digital multimeter. Increase the current until the multimeter reads 10% below
the maximum current setting on the tube. Do not exceed the maximum tube current!
