6. CONTROLS AND DISPLAYS

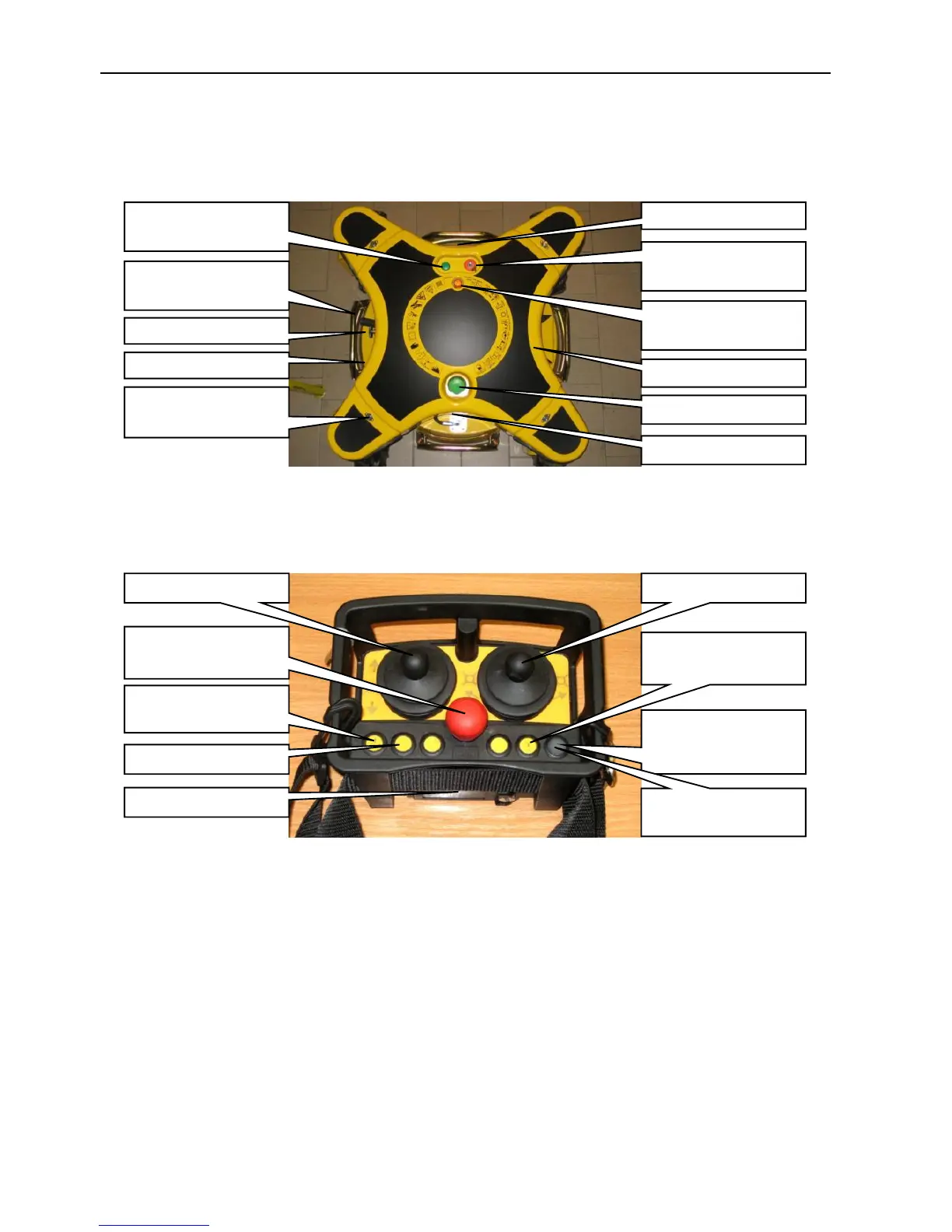

6.1. ON THE MOWER
 Tilt indicator: An intermittent acoustic signal (beeping) sounds when mower reaches dangerous slope.
6.2. ON THE REMOTE CONTROL
6.3. FUNCTIONS OF MOWER INDICATORS
- After unlocking the EMERGENCY STOP button on the mower the beacon starts to flash.
- After turning on the RC, a green light on the RC starts to flash.
- After pressing the confirmation button/horn an acoustic signal (beeping) will sound.
- If the drive servo is neutral position a green neutral light on the mower will illuminate.
- If the RC is turned off, signal interrupted or drive servo displaced (by moving the RC drive joystick) the
neutral light will dim.
- After pressing the EMERGENCY STOP button on the mower the beacon stops to flash.
- If a dangerous slope / mower tilt is reached an intermittent acoustic signal (horn beeping) will sound.
Inginiton switch
EMERGENCY STOP
Beacon / mower
operation indicator
Neutral light
Mowing blade
clutch lever
žacího nože
Emergency brake
Engine brake lever
Bonnet attachment
locks
Height of cut lever
Fuel tank
Battery
Drive pump by-pass
čerpadla
Steering joystick
Drive joystick
EMERGENCY STOP
Main switch
Confirmation button
Horn
Starter button
Frequency change
button
Empty RC battery
indicator
Power indicator
(green)
Battery
