10.9. WHEEL DRIVE GEAR
The terminal gear in the wheel suspension is fitted with an automatic tensioner and thus does not need to be
adjusted. In case of oil leakage add 50 ml of transmission oil to the wheel suspension.

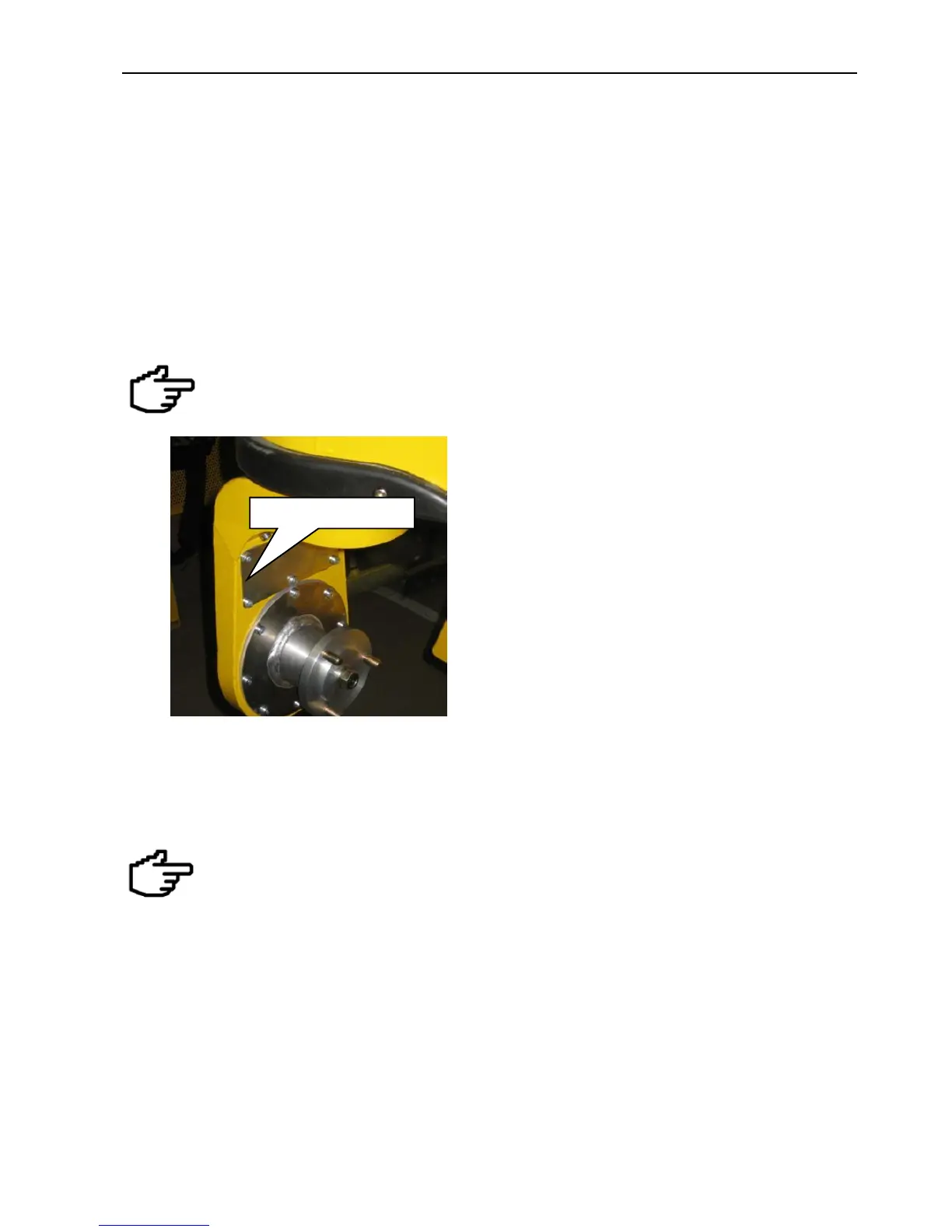

Instructions for adding oil
Lift the mower and support it so that wheels are freely above ground.
Loosen three nuts and dismount drive wheels
Dismount the (thin) cover plate of the wheel suspension. Clean both the plate and the surface of the
wheel suspension.
All about 50 ml of transmission oil and degrease both contact surfaces.
Seal the contact surfaces with silicon glue and tighten all bolts.
Mount back all drive wheels and tighten wheel nuts.
Do not modify inner components of the wheel suspension. Have them serviced by an authorized
service centre if necessary.
10.10. MAINTAINING ELECTRIC CIRCUITS, DEVICES AND TRANSMITTER
Keep all parts of electric circuits clean, especially from oil products, dust sediments and dry grass.
Replace conductors with damaged insulation. For replacement use only original conductors supplied by
the manufacturer.
Repairs of electric circuits should only be performed by authorized service centres.
