10.18. LUBRICATION
Use adequate amount of lubricant on parts, which are to belubricated. Excessive lubricant tends to drop
downand pollute both the machine and the environment.Insufficient amount requires frequent lubrications.
For the lubrication of sliding parts, pivots and chains use chain spray (e.g. Cain grease Berner). Make sure the
lubricant is applied exactly on the lubrication point. This will prevent the accumulation of dirt on the lubricated
surfaces.

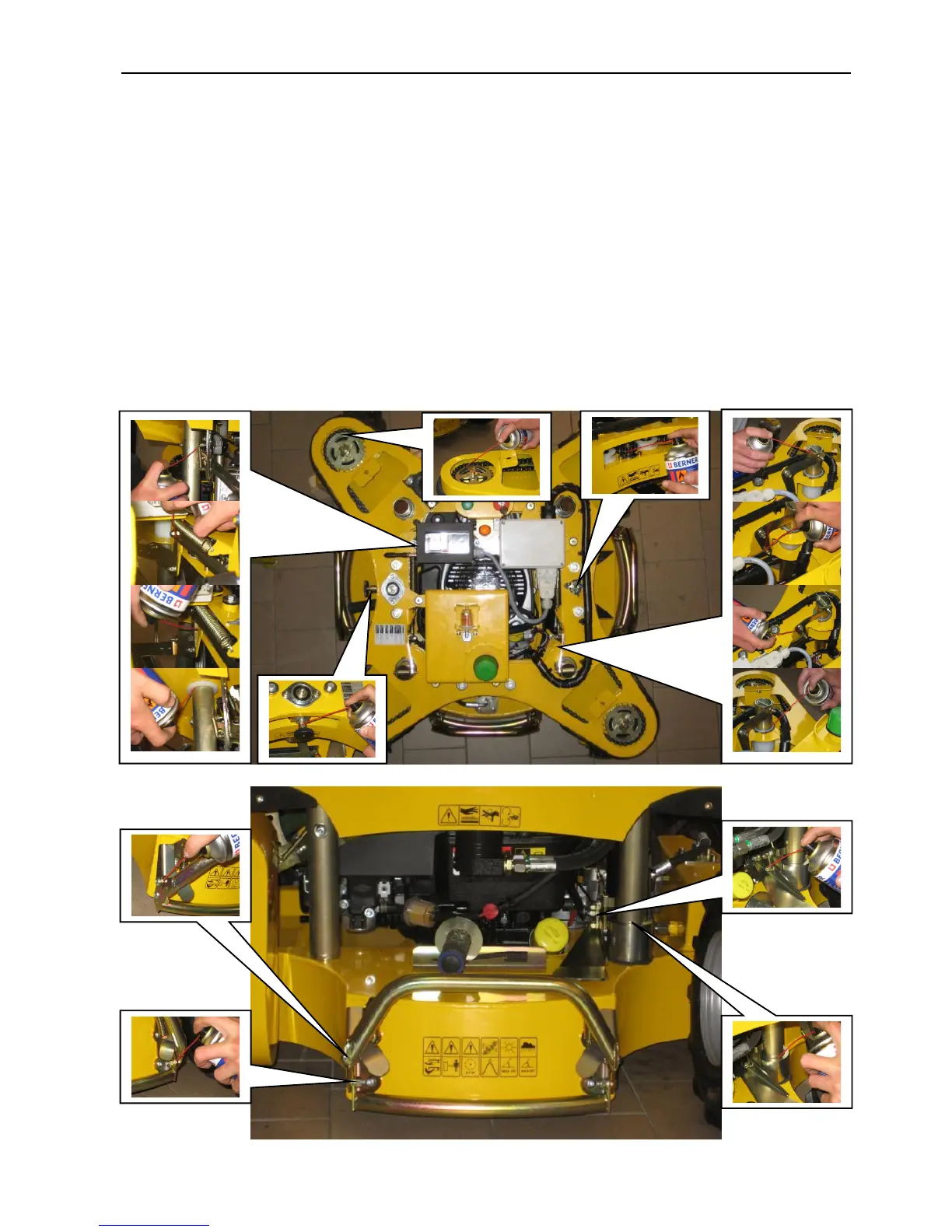

Lubrication points:
1. Height adjustment lever (pivots, friction surfaces of levers, sliding bar inside a bushing)
2. Chains (steering chain, drive chain)
3. Emergency brake lock
4. Engine brake (pivots and friction surfaces of levers)
5. Sliding bar under the brake weight
6. Pivots of fold-out bumpers
