SPIDER MINI - Fuses, Relays

Operation manual – Spider MINI
42 / 53 rev. 02-01-10-2011

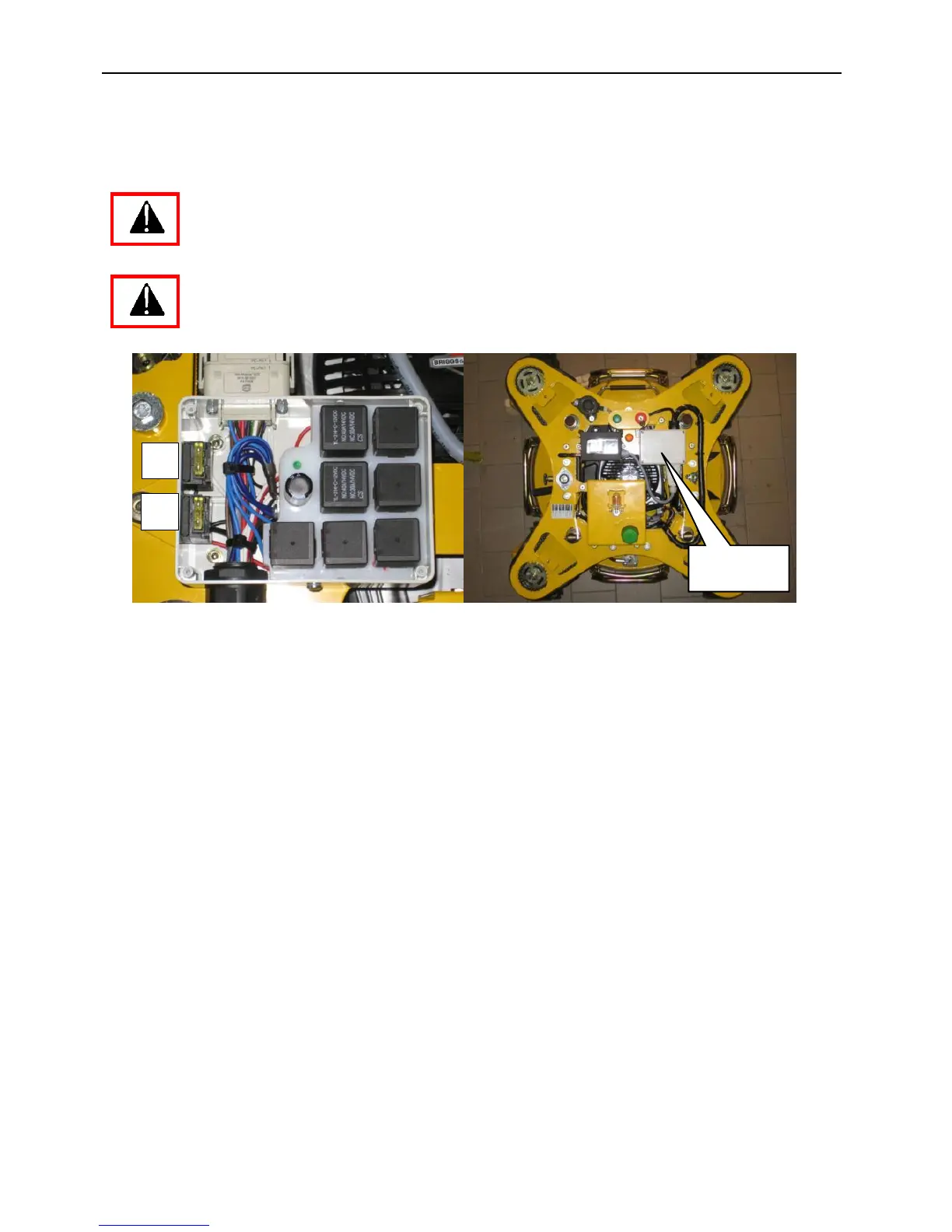

10.13. FUSES, RELAYS
The fuse box is place in the upper part of the mower under a protective cover. The fuse box holds main fuses of
the mower and relays for the switching of various function of the mower.
Never modify any components inside the fuse box as this may lead to short circuits and damage
electric components of the mower. Have the relays replace by an authorized service centre.
When replacing fuses follow the electric current value for which the fuses are designed. Do not
replace damaged fuses with fuses with a higher or lower electric current value. These could
cause damage or even a fire in the mower!
1. Main switching relay for the machine power supply
2. Ignition grounding relay
3. Starter switching relay
4. Steering relay
5. Steering relay
6. Power relay of engine brake
7. Control relay of engine brake
8. 20A charging fuse
9. 20A main machine fuse
1
2
3
4
5
6
7
8
9
Fuse box
position
