Operation manual – Spider MINI
43 / 53 rev. 02-01-10-2011
10.14. MOWING BLADE
Regularly check the condition of the mowing blade.
The blade:
must not show signs of damage, such as twisted, bent or
deformed parts of the blade;
must be properly attached to the flange by bolts;
must be sharp;
fastening bolts must not be damaged
For proper and reliable functioning the blades are statically balanced by the manufacturer. This balance must
be preserved during the entire use of the blade. The blade must be statically balanced after each sharpening
To tighten the blade, use a torque wrench and a specified tightening torque of 60 Nm
If the blade is damaged it is prohibited to:
straighten it
heat it
weld it
reinforce it or otherwise change its construction
When replacing worn-out parts follow these rules:

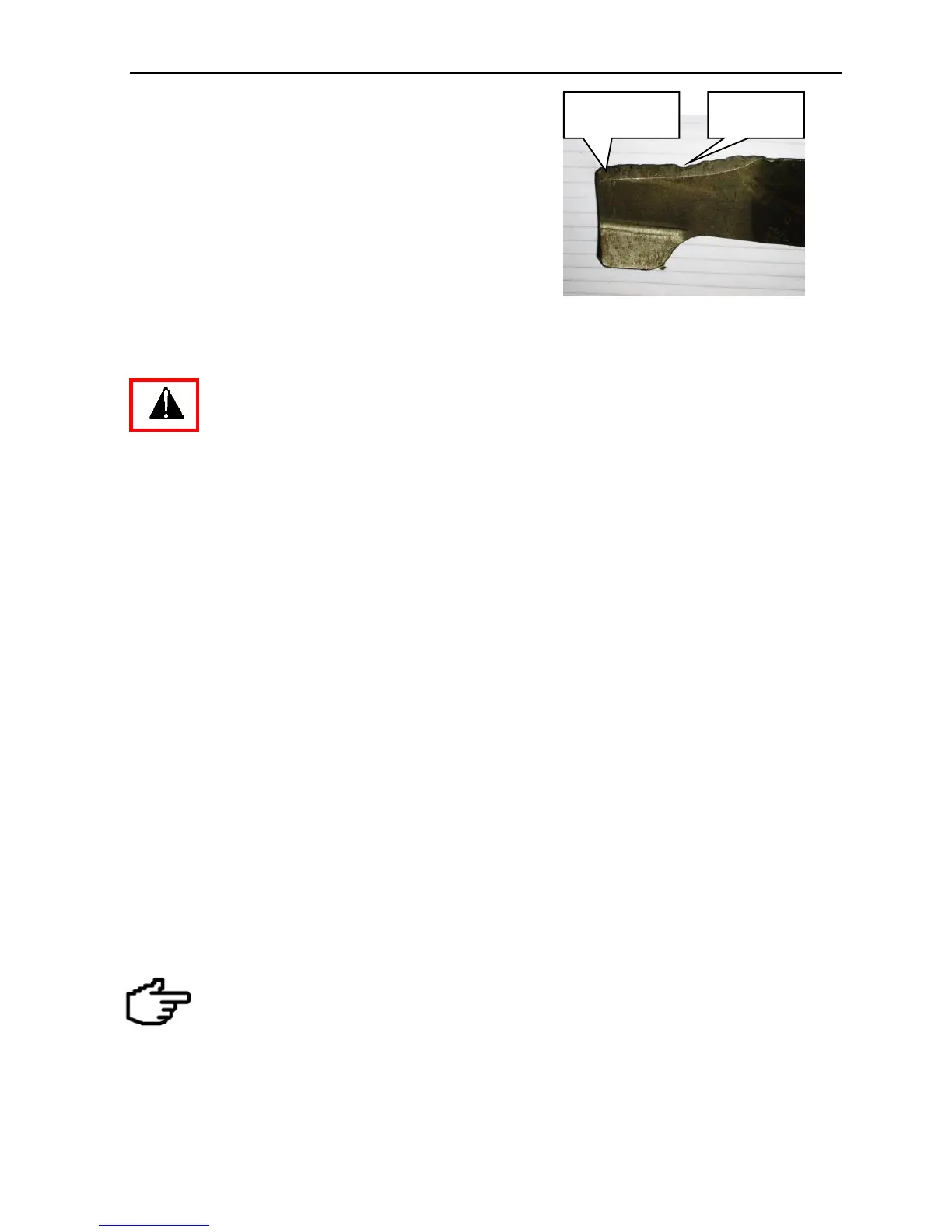

The permitted wear of the blade is 12 mm (0,5 inch). Blade must be replaced it the wear is higher than
permitted.
Balancing must be carried out after sharpening
The blade cannot be repaired / renewed.
When changing the blade, use new fastening bolts if the current ones show signs of damage. Only
high-tensile steel bolts may be used for this purpose. No other steel bolts are acceptable.
If the mowing mechanism vibrates when engaged, do not continue operating the mower, turn it off and
contact your local dealer.
To tighten bolts use torque listed in the chart at the end of this chapter (see 11.19).
Changing the mowing blade
Stop the engine, turn of the RC and press the EMERGENCY STOP button the mower
Disconnect the battery.
Place the mower on a flat and firm surface.
Lift the mower to the service position and secure it against falling.
Use gloves to change the blades.
Release fastening bolts of the blade. Remove the bolts and washers. Attention, the blade may fall
down to the ground when the bolts are removed.
Work in reversed order when mounting new blade.
Always check the bolts when mounting a blade.
After mounting the blade check if it holds firmly. Pay special attention to the first engagement of the
blade after replacing it. Check for unknown sounds and vibration.
Always lift the mower on the side of the exhaust and place it with hydraulic tank down so as to
prevent oil from leaking inside the air filtration. Do not spill the oil.
