97
6000 Bird Dog Plus Only
F.3.2.3.3 Form 5 Meter: 3 Wire Delta
Automatic Phase Rotation Test—Voltage Cable Hookup
Red alligator clip—Phase A
White alligator clip—Phase B or common
Black alligator clip—Phase C
Yellow (or green for older units) alligator clip leave unconnected
Meter Test Hookup
Secondary Voltage Cable
o Red alligator clip to phase A
o White alligator clip to phase B or common
o Black alligator clip to phase C
o Yellow (or green for older units) alligator clip leave unconnected
Secondary Current Cable
o A phase clamp-on CT or duckbill connector copper side up in line A (I
A
)
o C phase clamp-on CT or duckbill connector copper side up in line C (I
C
)

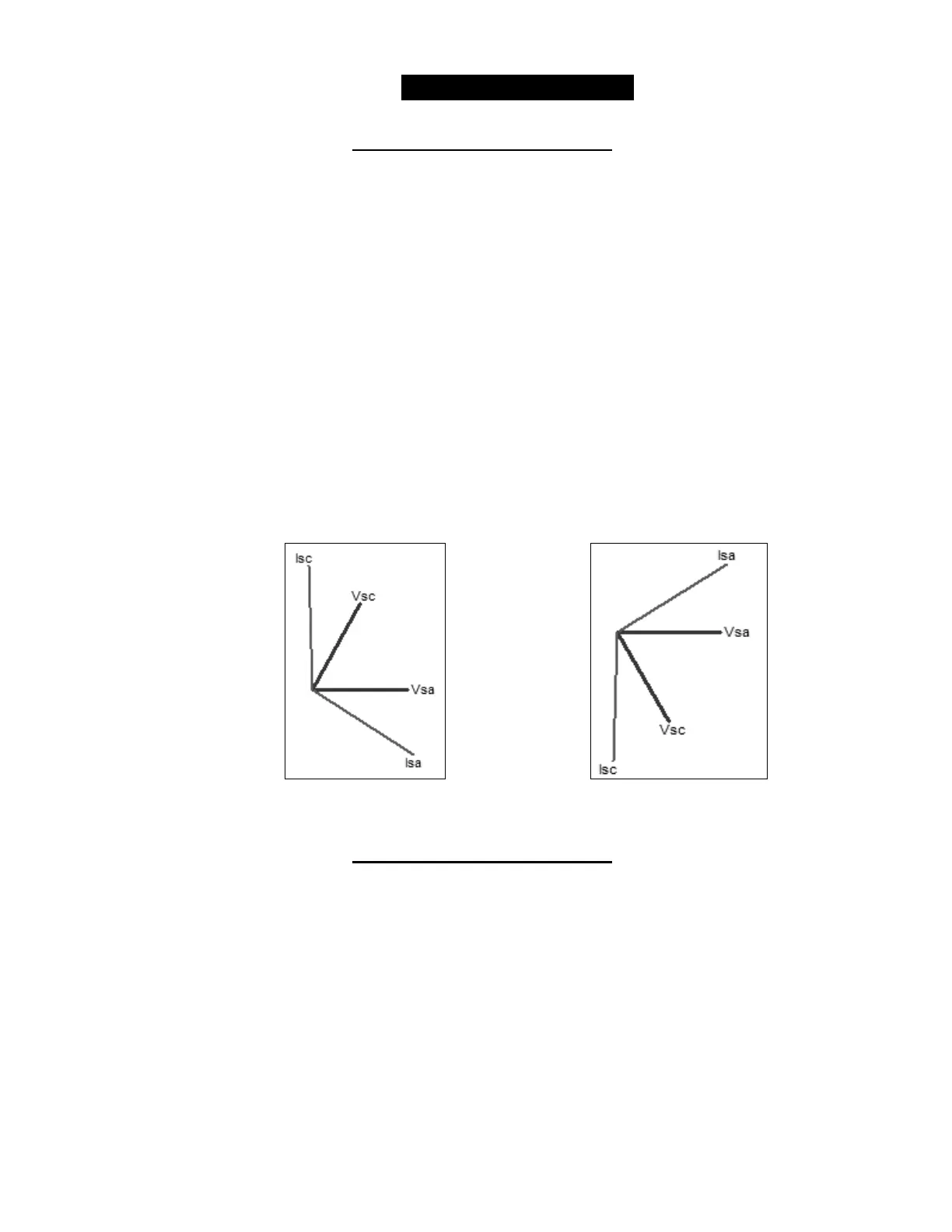

Form 5 3 Wire Delta ABC Rotation Form 5 3 Wire Delta CBA Rotation
Unity Power Factor Unity Power Factor
F.3.2.3.4 Form 5 Meter: 4 Wire Delta
Automatic Phase Rotation Test—Voltage Cable Hookup
Red alligator clip—Phase A
White alligator clip—Neutral
Black alligator clip—Phase C
Yellow (or green for older units) alligator clip leave unconnected
Meter Test Hookup
Secondary Voltage Cable
o Red alligator clip to phase A
o White alligator clip to neutral.
o Black alligator clip to phase C
o Yellow (or green for older units) alligator clip leave unconnected
