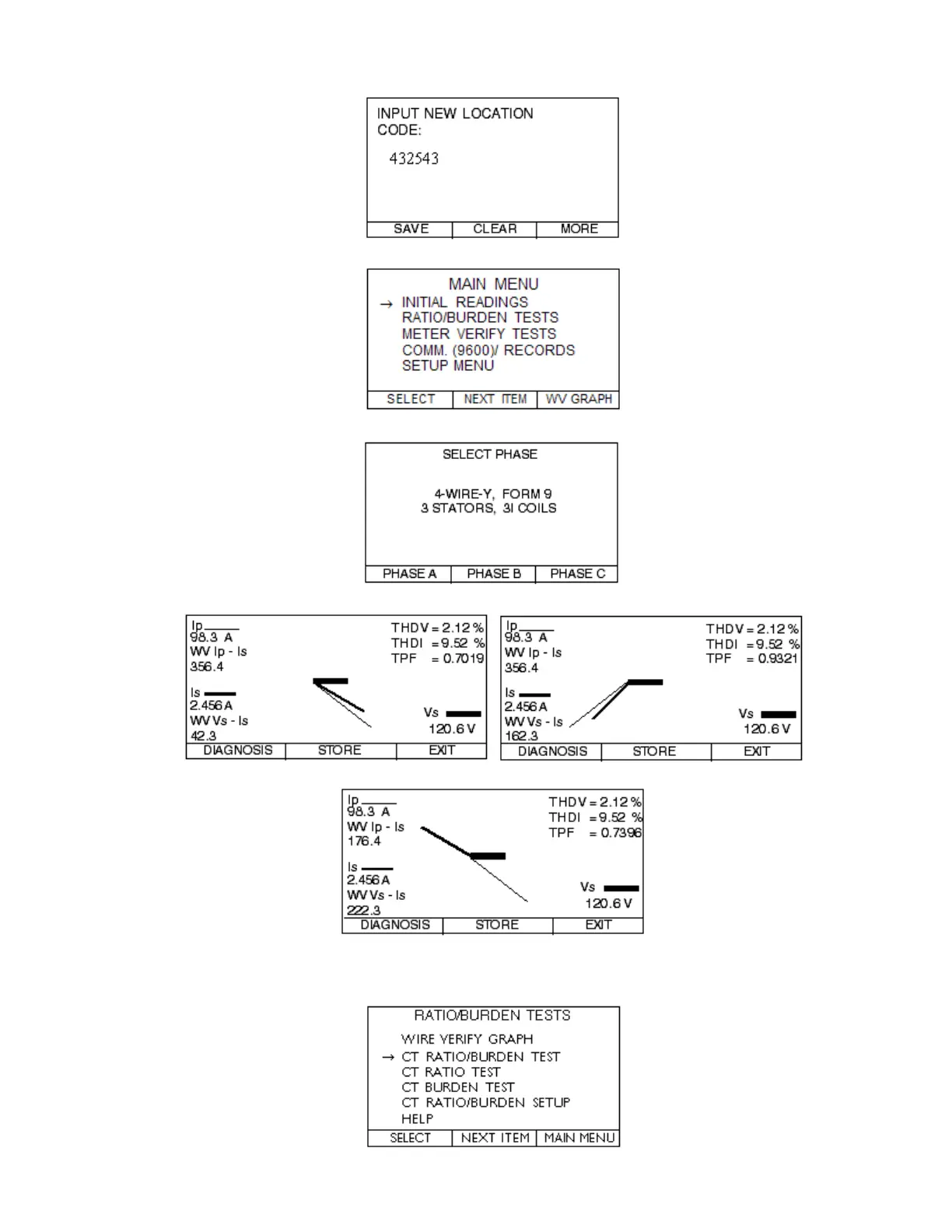

Step 4.8—Press the SAVE button and you will be taken to the MAIN MENU.
Step 5.1—SELECT WV GRAPH—the bottom right button.
Step 5.2—Select the PHASE you are testing.
Steps 5.3—Review the wire verify graph for appropriate readings & press EXIT.
Proper Wiring Bad Hook Up or Cross Wired Circuit
Leads Reversed or Duckbill Backwards
Step 5.5—Select CT RATIO/BURDEN TEST.

