4.7 Press the START button (or wait 5 seconds). Once the sensor sees a pulse or a disk
rotation, the test will begin. The test will automatically stop once the final revolution or
pulse is detected.

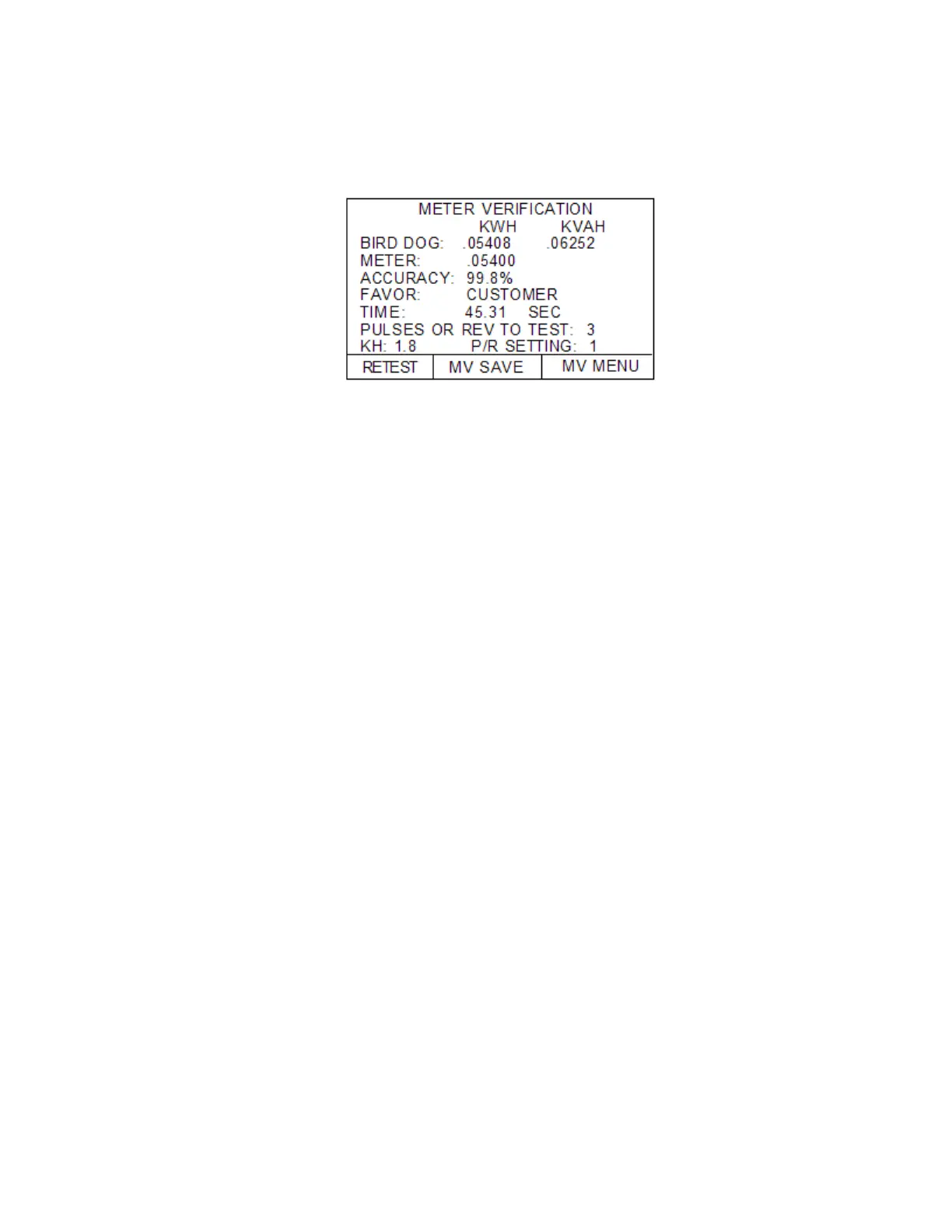

5. Review Results of Meter Verify Test & Save Results
5.1 Insure that the accuracy is within your tolerance specification.
Test Time > 30 Seconds?
Accuracy OK?
5.2 Press the MV SAVE button
5.3 Press STORE if all is OK. Press ABORT if a correction is needed
5.4 You have now finished testing the accuracy of the entire meter (all 3 phases) and
storing the data in memory.
6. Wrap Up Procedure--After testing, turn off Bird Dog Plus, leaving cables connected. Coil
secondary voltage and current probes into their appropriate compartments. Then coil the
sensors and put them in their compartment. Close the case lid. You are done.
