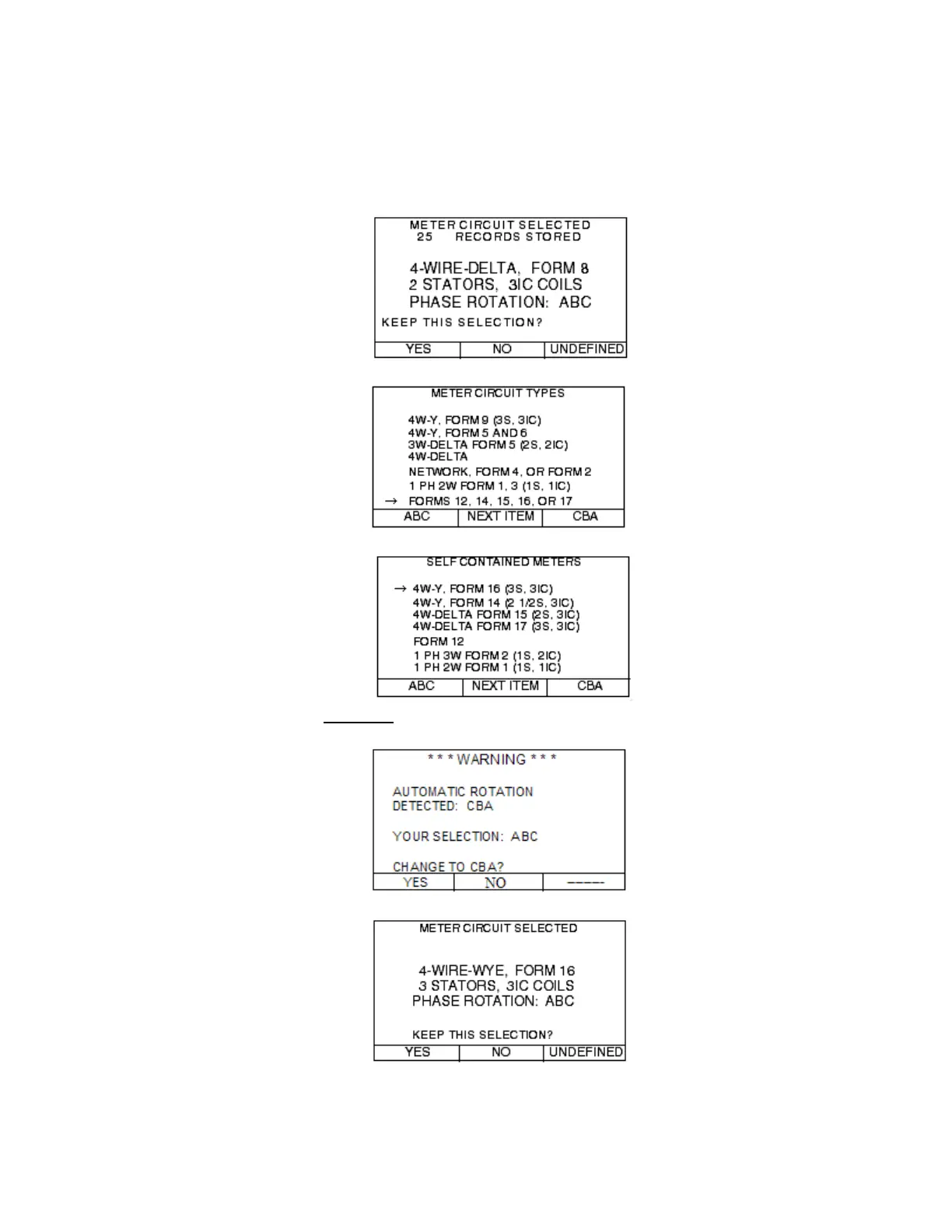

SECTION F.2.6

SCREEN FLOW FOR 6000 BIRD DOG PLUS SIMULTANEOUS

3 PHASE METER VERIFICATION TESTING ON A SELF-

CONTAINED METER

Step 3.1—Select NO if this is not the correct meter type & rotation.

Step 3.2—Select the correct meter type & rotation.



Step 3.2--Fine tune the meter type chosen in the previous step and press SELECT.

Step 3.2—If you are incorrect as to the rotation, you will see the following message. Press the

YES button:

Step 3.2—Confirm the meter type & rotation selected by pressing YES.

Spinlab Bird Dog Plus 5000 - Page 27
