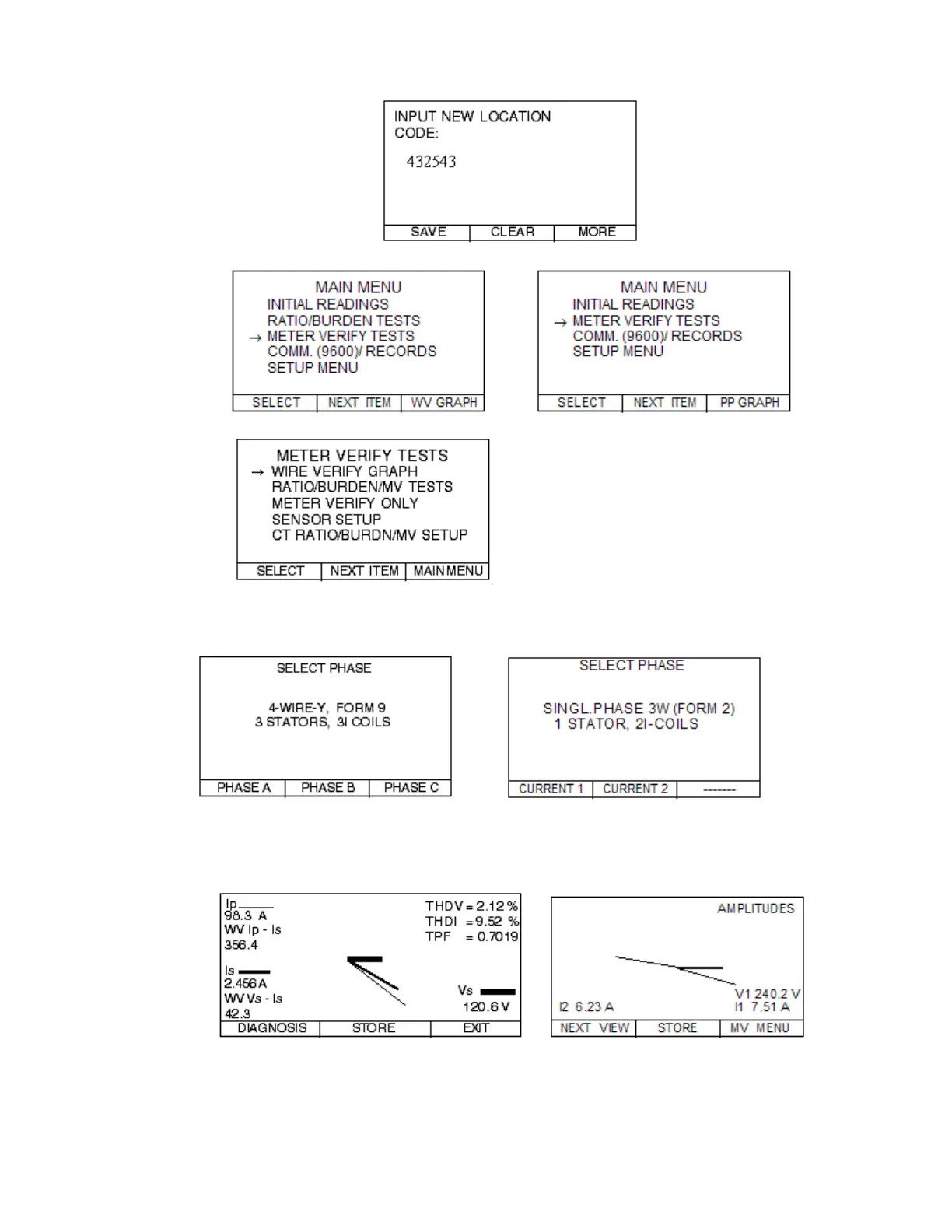

Step 4.8—Press the SAVE button and you will be taken to the MAIN MENU.

Step 5.2—Select METER VERIFY TESTS. Select PP GRAPH for a Forms 1, 2 or 12.

For a Polyphase Meter For a Form 1, 2, or 12 Meter

Then SELECT WIRE VERIFY TESTS.

Step 5.3—Select the PHASE you are testing.

SELECT PHASE for a Polyphase Meter Press CURRENT 1 or 2 for a Form 2 Meter

Steps 5.4 & 6.1—Review the wire verify graph for appropriate readings & press EXIT or

MV MENU for a Form 1 or 2.

Proper Wiring for a CT Rated Meter Proper Wiring for a Form 2 Meter
