46

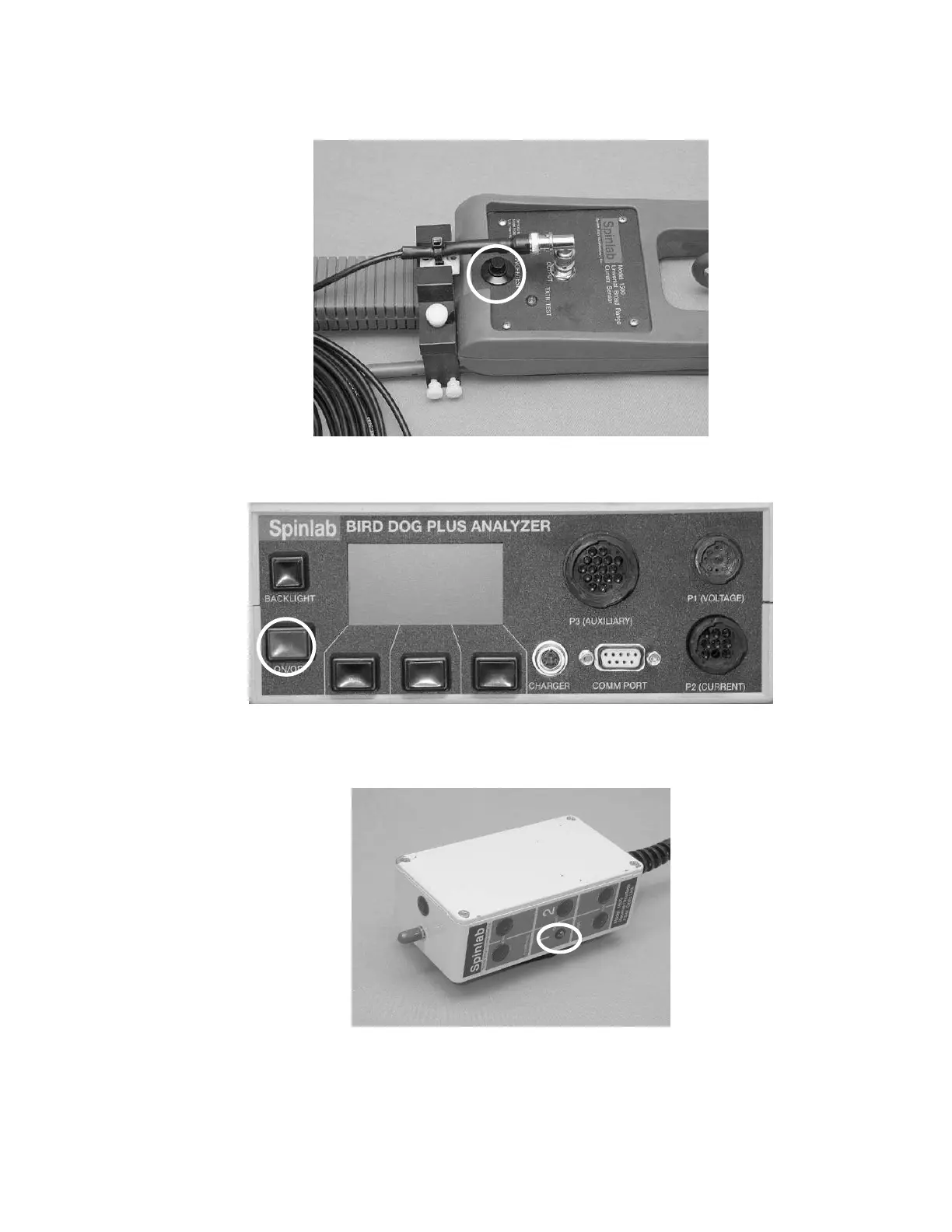

Step 6—Now turn on the high voltage head by pressing the button on front of the head for less
than 1 second.
Step 7—Now turn on the Bird Dog Plus.
Step 8—If the probe head is communicating with the Bird Dog Plus, the red LED on the Retriever
Interface Box or the 3 Phase Connector Box should now be illuminated.
Older 5000 Bird Dog Plus Retriever Interface Box
