47

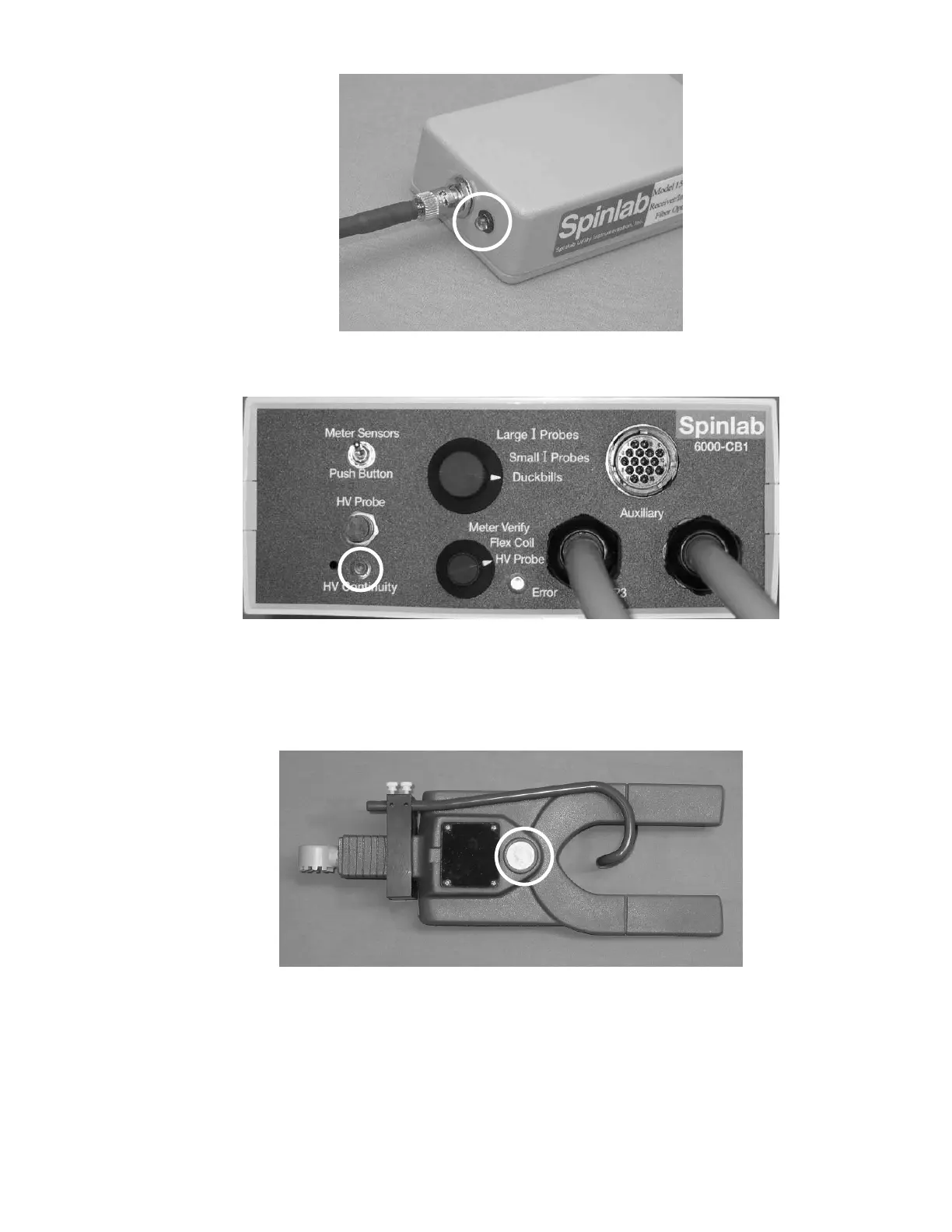

Newer 5000 Bird Dog Plus Retriever Interface Box
6000 Bird Dog Plus 3 Phase Connector Box
Step 9—Note the polarity dot on the rear of the high voltage head. Just like your instrument
transformers, place the polarity dot toward the line or source.
