Spinlab Bird Dog Plus 5000 - Page 84

78

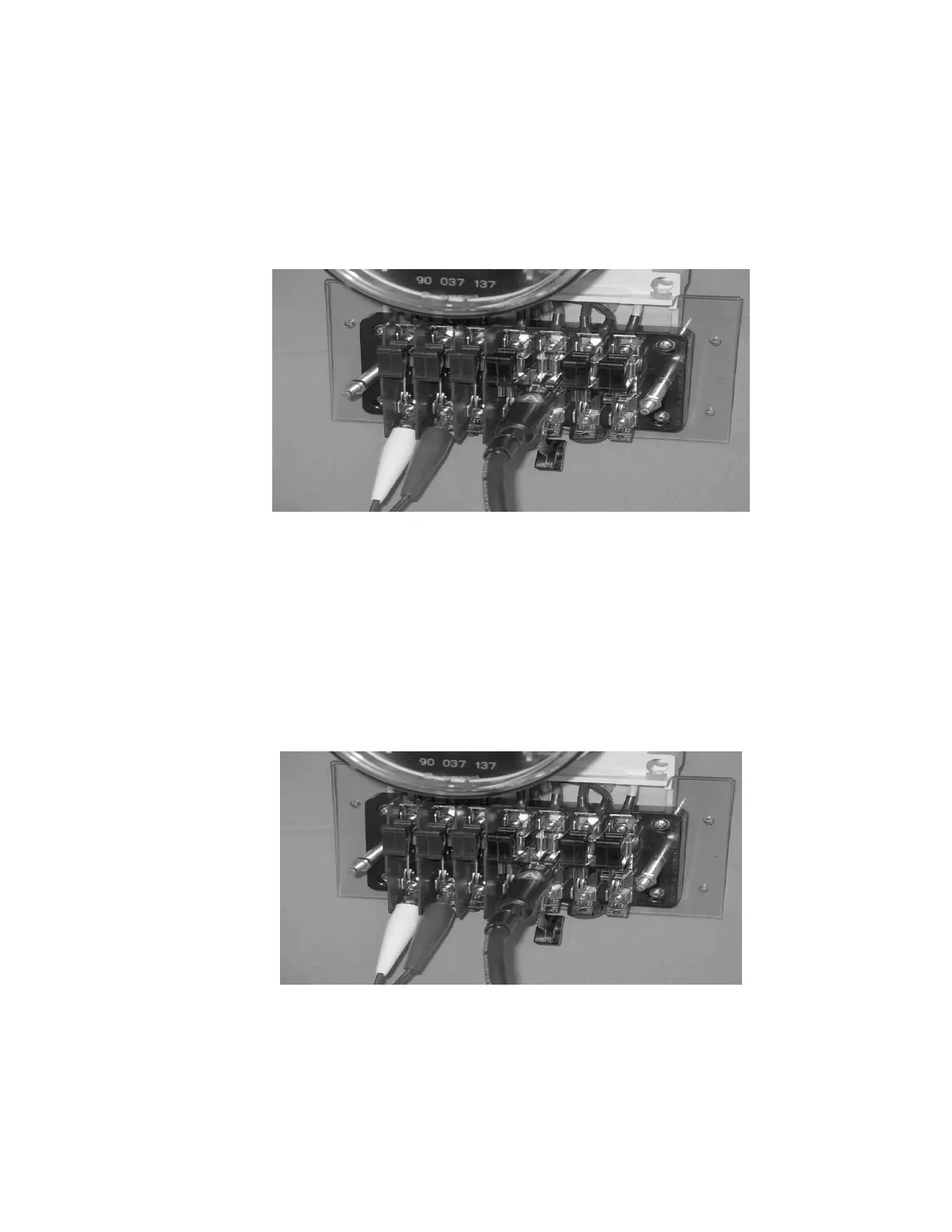

1. Form 3S (2 Wire)
1.1 CT and Secondary Wiring Circuit Test
1.1.1 To Measure Is
1
: Insert A Phase Duckbill into T1
1.1.2 To Measure V
1N
: Attach Red Alligator Clip to PM and White
Alligator Clip to PL
1.2 Meter Verification Test (Same hookup as for CT Test)
2. Form 3S (3 Wire)
2.1 CT and Secondary Wiring Circuit Test
2.1.1 To Measure Is
1
-Is
2
: Insert A Phase Duckbill into T1
2.1.2 To Measure V
12
: Attach Red Alligator Clip to PM and White Alligator
to PL
2.2 Meter Verification Test (Same hookup as for CT Test)
