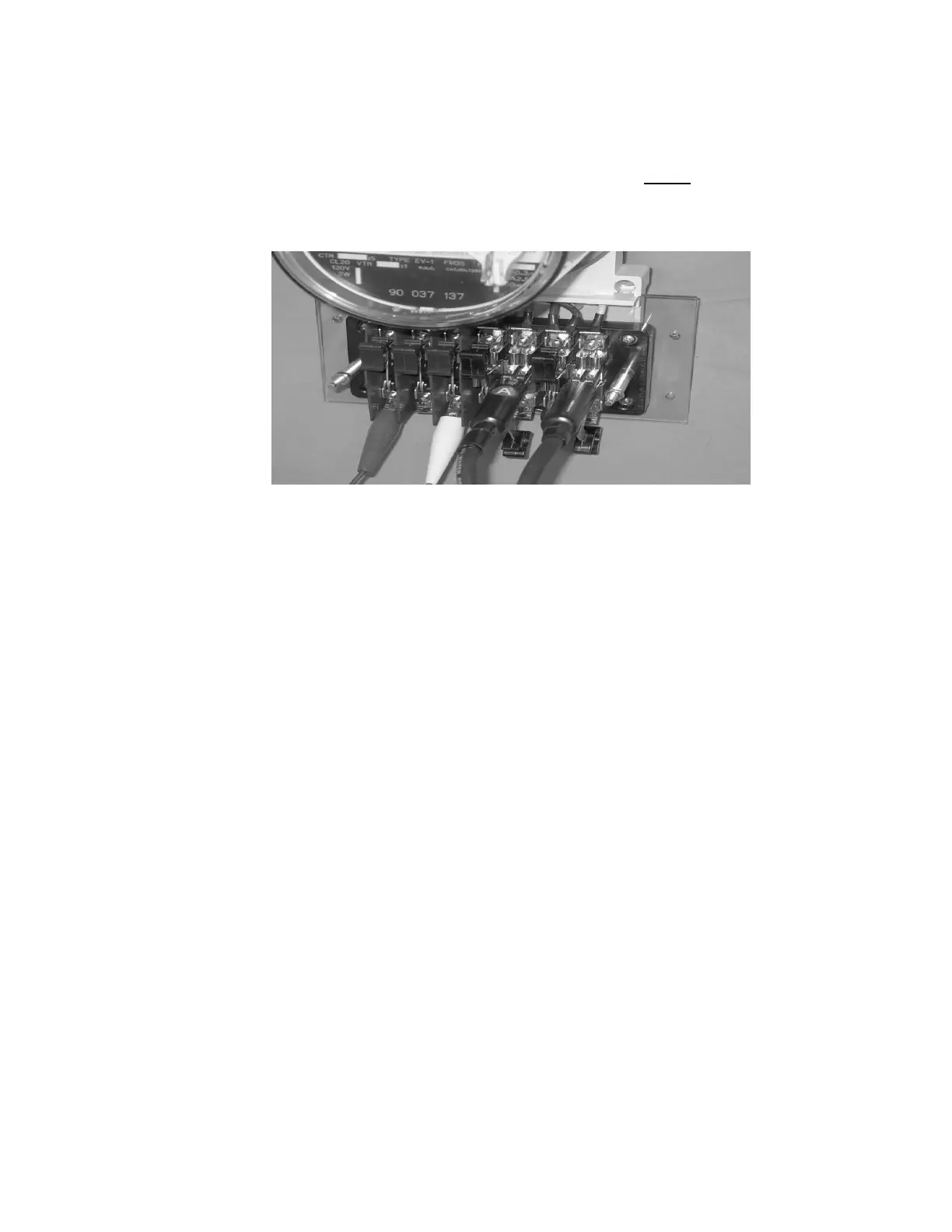

3.3 Meter Verification Test for a 6000 Bird Dog Plus
3.3.1 To Measure Is
1:
Insert A Phase Duckbill into T1
3.3.2 To Measure Is
2
: Insert B Phase Duckbill into T2
(Copper Side Down)
3.3.3 To Measure V
12
: Attach Red Alligator Clip to PL and White
Alligator Clip to PR
