SP500 Electropneumatic Smart Positioner

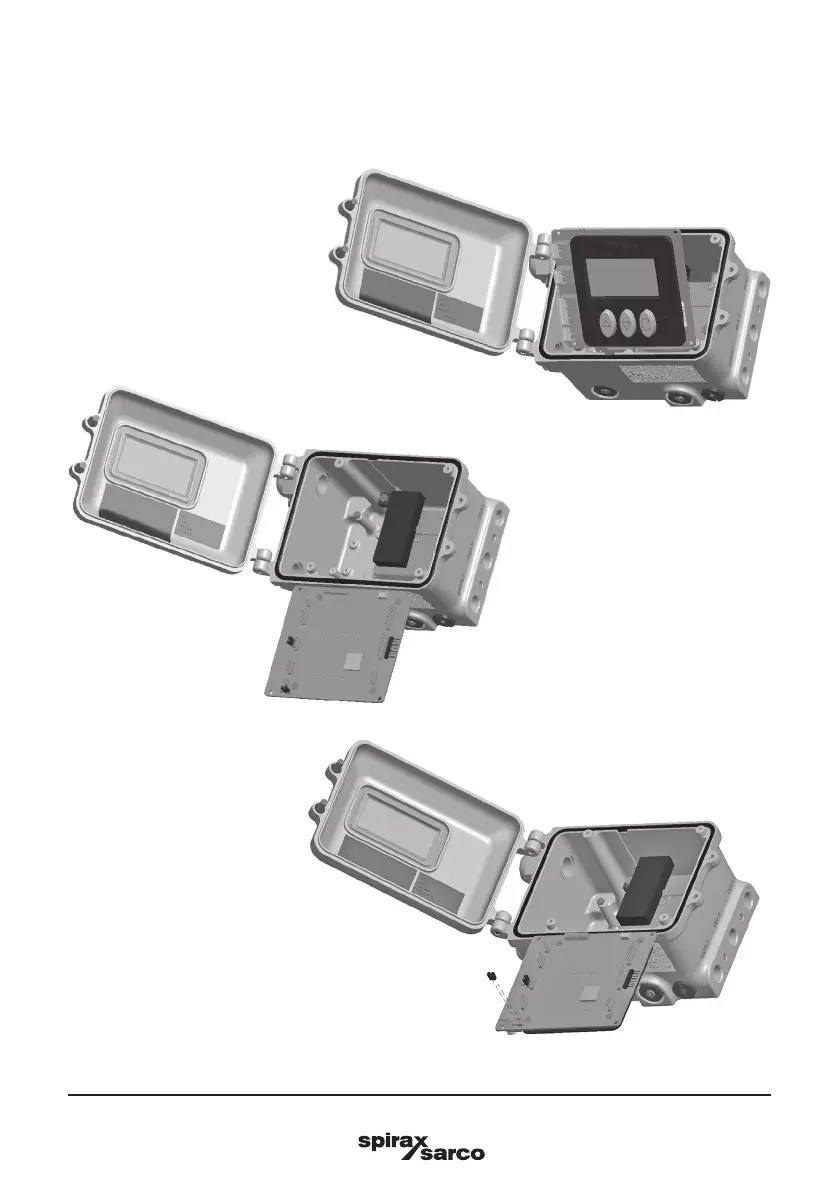

Fig. 12
Fig. 13
Fig. 14
-
Rotate the mainboard and insert the option board (as shown in Figures 12 and 13).
-
Remove the Jumper J4 (Figure 14).
