IM-P706-03 CTLS Issue 1
19
SP7-20 Smart Positioner
3.1.11 Mounting on rotary actuator
For mounting on part-turn actuators in accordance with VDI/VDE 3845, the following attachment kit is
available.

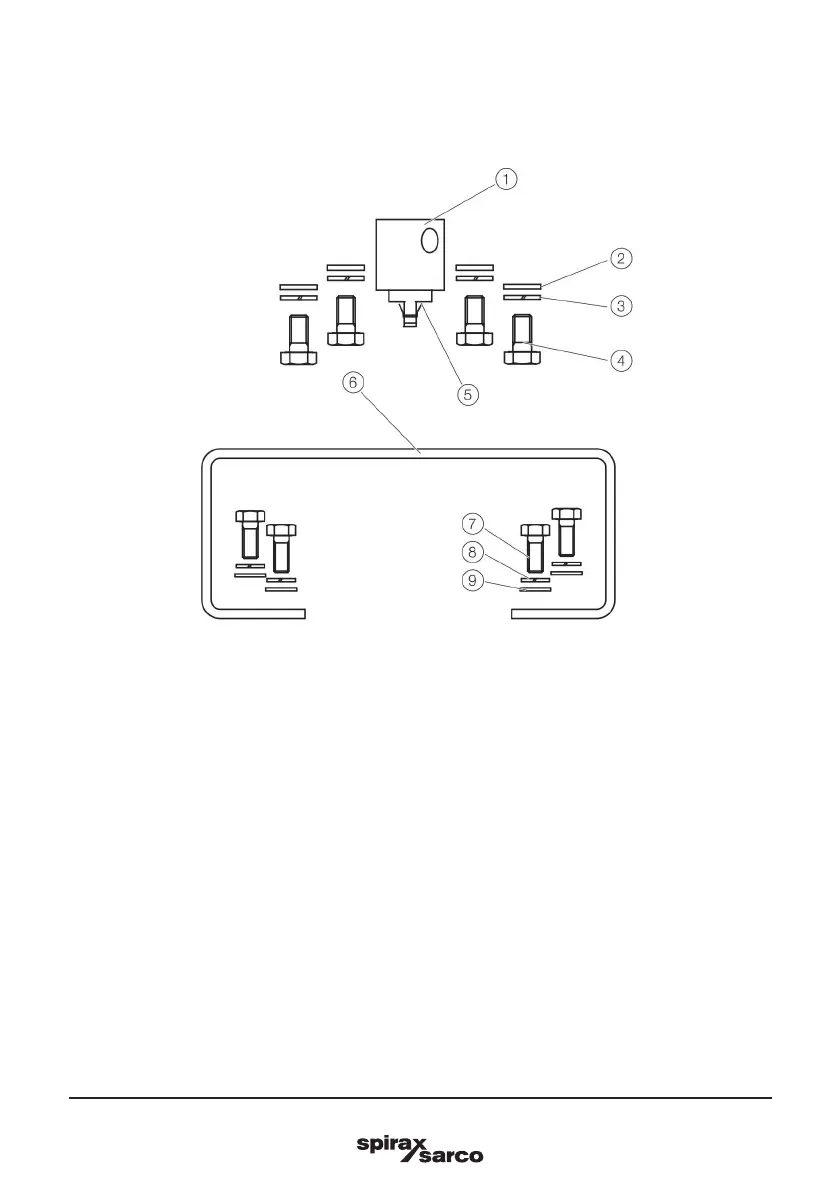

Fig. 12 Components of attachment kit
-
Adapter 1 with spring (5).
-
Four M6 screws each (4), spring washers (3) and washers (2) to fasten the attachment bracket (6) to
the positioner
-
Four M5 screws (7), Spring washers (8) and washers (9) to fasten the attachment bracket to the actuator
Required tools:
-
Wrench, size 8/10
-
Allen key, size 3
