Lever and Remote Damper Change
Lever and Remote Damper Change
There are four damper options for the SIDLuxe: lever adjust, remote in, remote out, and backside remote. For spare part kit contents and details,
consult the Rockshox Spare Parts Catalog at www.sram.com/service.
Consult your frame manufacturer for remote routing and orientation of your rear shock. For remote cable and housing installation consult the
Remotes User Manual at www.sram.com/service.
NOTICE
To change from a 2P to a 3P damper system, or vice versa, requires a different valve cup and new lever or remote cams. See the
Lever and Remote Damper Change and Mid-Tune Valve Cup Change.
Parts, Tools, and Supplies
Parts
• AM UPGRADE KIT 2P LEVER SIDLUXE A2
• AM UPGRADE KIT 2P REMOTE SIDLUXE A2
• AM UPGRADE KIT 3P LEVER SIDLUXE A2
• AM UPGRADE KIT 3P REMOTE SIDLUXE A2
Safety and Protection Supplies
• Safety glasses
• Nitrile gloves
Common Tools
• 1.5, 2, 2.5 mm hex wrench
• 1.5, 2, 2.5 mm hex bit socket
• Torque wrench

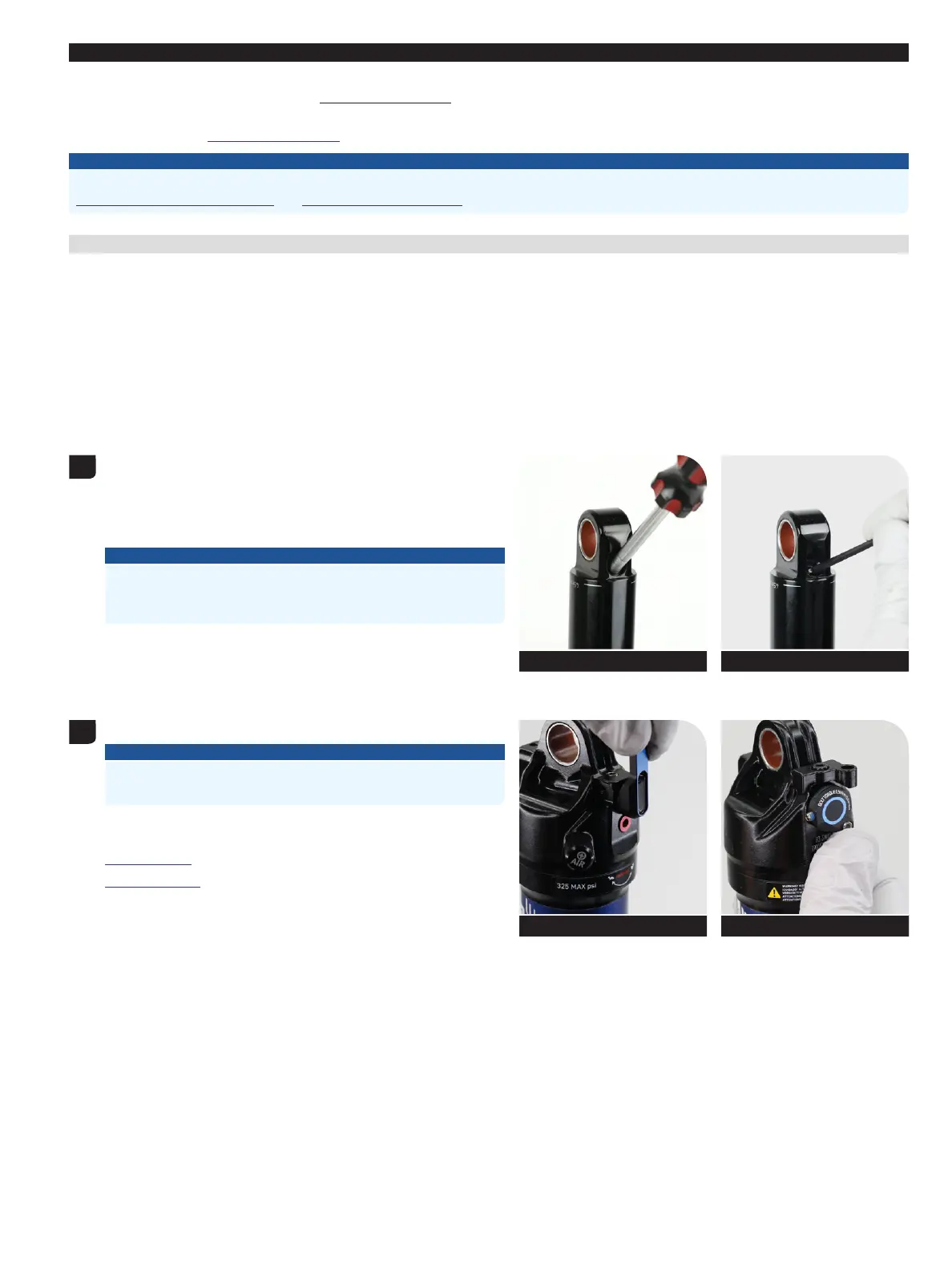

Remove the damper air/nitrogen fill port cap. Depress the Schrader Remove the damper air/nitrogen fill port cap. Depress the Schrader
valve and release all air pressure from the damper. valve and release all air pressure from the damper.
Once the pressure has been released, depress the Schrader valve a Once the pressure has been released, depress the Schrader valve a
second time. If the Schrader valve is able to move, the shock has been second time. If the Schrader valve is able to move, the shock has been
completely depressurized.completely depressurized.
NOTICE
The IFP pressure must be released before proceeding to release the
compression poker. The cam/lever assembly will not remove from the
eyelet if the IFP is pressurized.
Rotate the lever 360° and rotate the remote pulley until it stops (~120°). Rotate the lever 360° and rotate the remote pulley until it stops (~120°).
NOTICE
Failure to rotate the lever or remote pulley before dissassembly may
result in the compression poker obstructing the cam removal.
Continue with the eyelet controls/damper removal for your shock:
Lever Removal
Remote Removal
1
Schrader valve tool Small hex
Schrader valve tool Small hex
2
Lever 360° Remote pulley ~120°
To Next Page
