Mid-Tune Valve Cup Change (Optional)
Mid-Tune Valve Cup Change (Optional)
To change from a 2P (two-position) to a 3P (three-position) damper To change from a 2P (two-position) to a 3P (three-position) damper
system, you must install a new valve cup and new lever or remote system, you must install a new valve cup and new lever or remote
cams. cams.

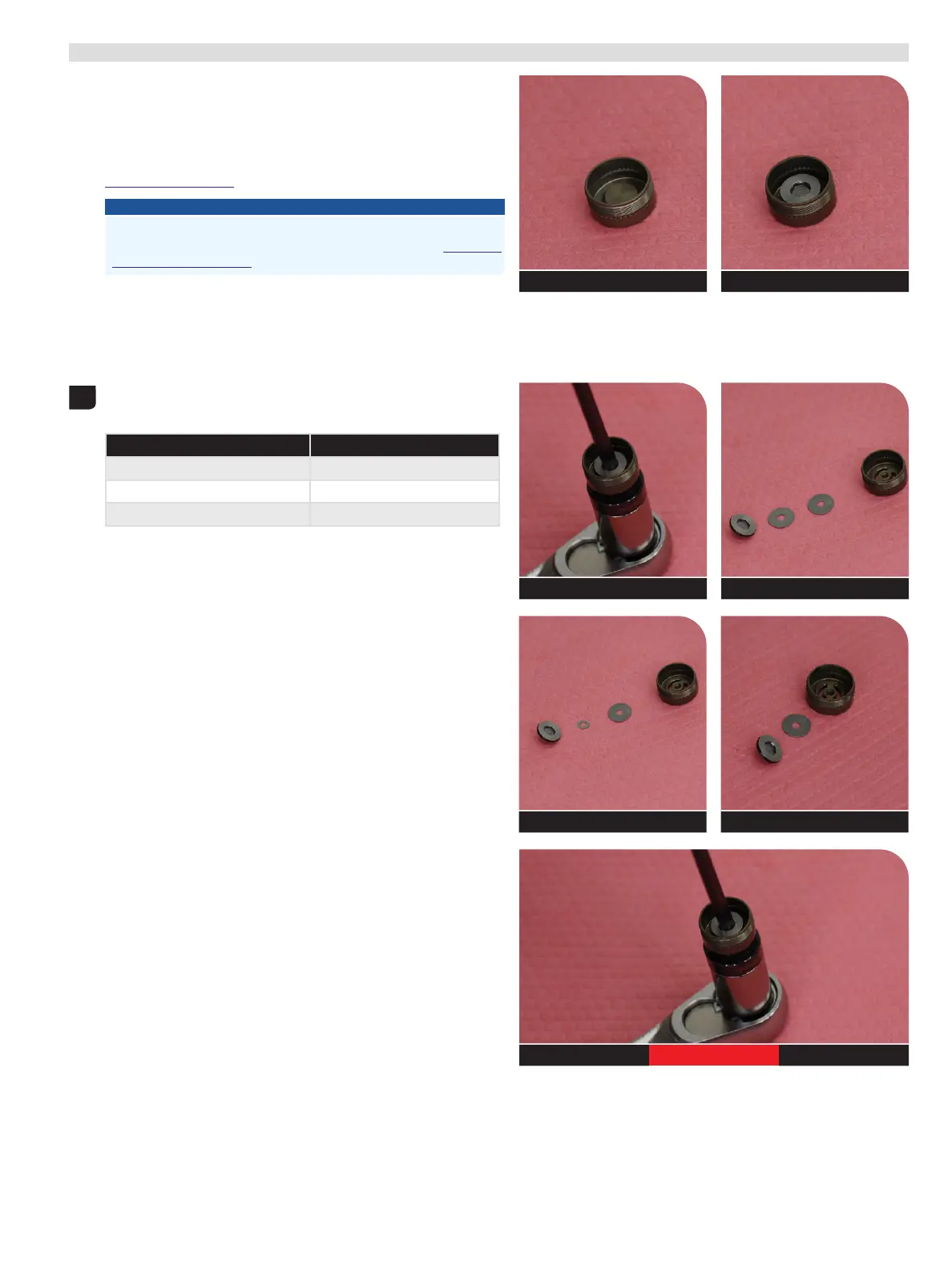

The 2P valve cup does not have any holes or shims. The 3P valve cup The 2P valve cup does not have any holes or shims. The 3P valve cup
has holes, shim(s), and a bolt. The 3P valve cup has an optional tune has holes, shim(s), and a bolt. The 3P valve cup has an optional tune
change. Consult the RockShox Spare Parts Catalog at change. Consult the RockShox Spare Parts Catalog at
www.sram.com/servicewww.sram.com/service for part numbers. for part numbers.
NOTICE
To change from a 2P to a 3P damper system, or vice versa, requires a
different valve cup and new lever or remote cams. See the Lever and
Remote Damper Change section for installation.
3P Only: Loosen the Mid-Tune valve cup bolt. Remove the shim(s).
Install the appropriate number of shims for your desired tune. Install the
valve cup bolt and tighten.
Tune Shim Size
3P M8 3 x 11 x 0.15 / 3 x 11 x 0.15
3P M5 3 x 11 x 0.15 / 3 x 6 x 0.15
3P M2 3 x 11 x 0.15
2P Valve Cup 3P Valve Cup
14 mm socket / Piston tool 1.1 Nm (10 in-lb) 5 mm
14 mm socket / Piston Tool / 5 mm M8 Tune
1
M5 Tune M2 Tune
